PRODUCT CENTER

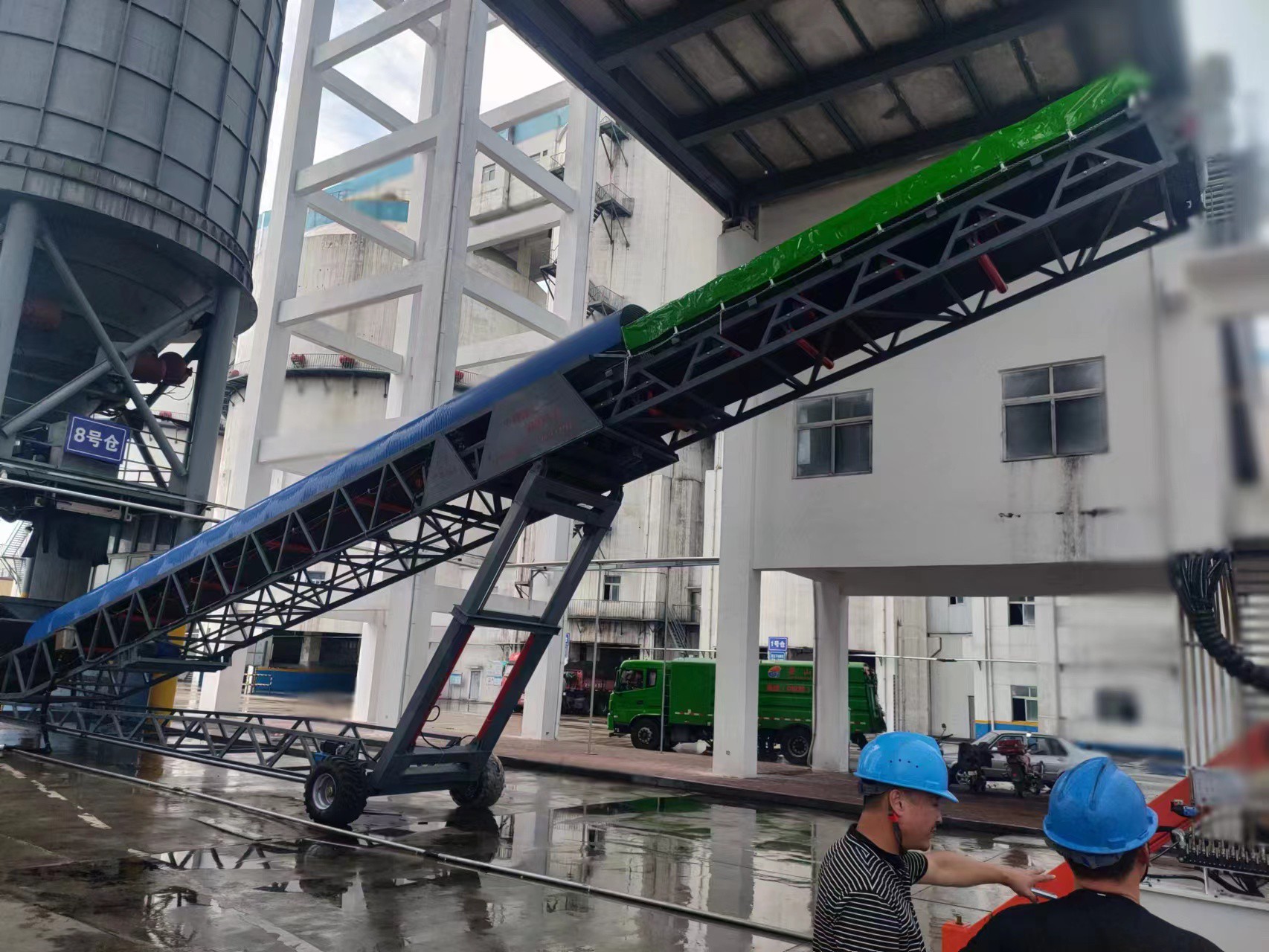

![Rotating, elevating, and extending belt conveyor]( "Rotating, elevating, and extending belt conveyor")

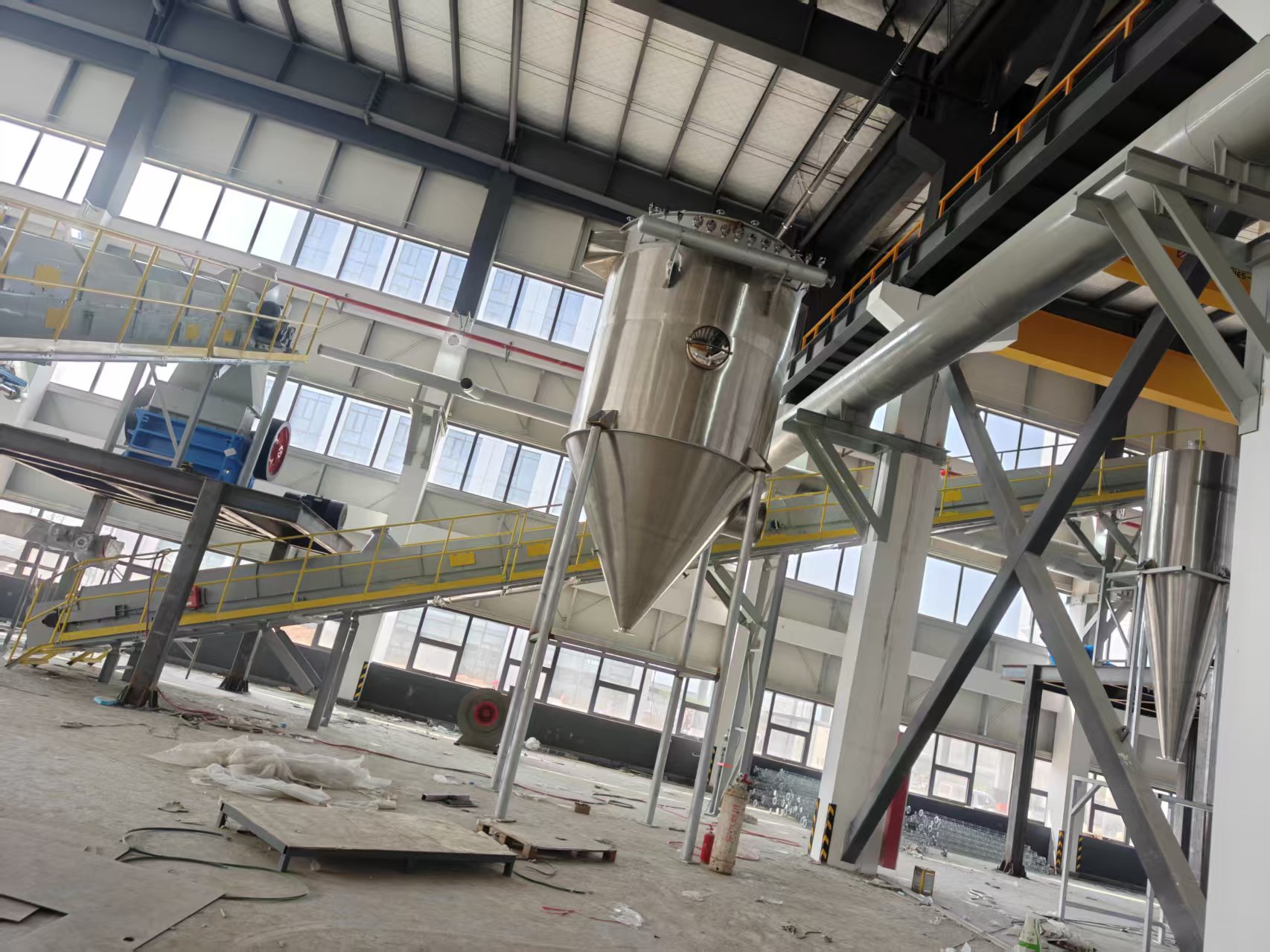

Rotating, elevating, and extending belt conveyorLearn More![Fully sealed belt conveyor]( "Fully sealed belt conveyor")

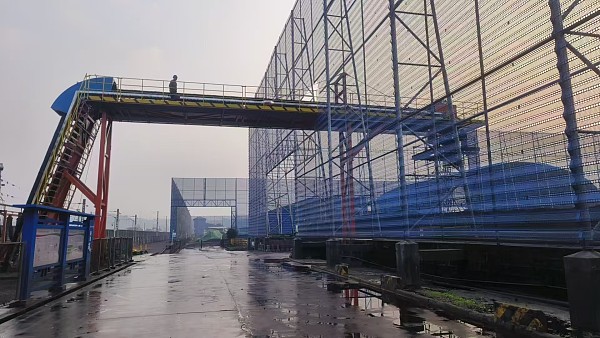

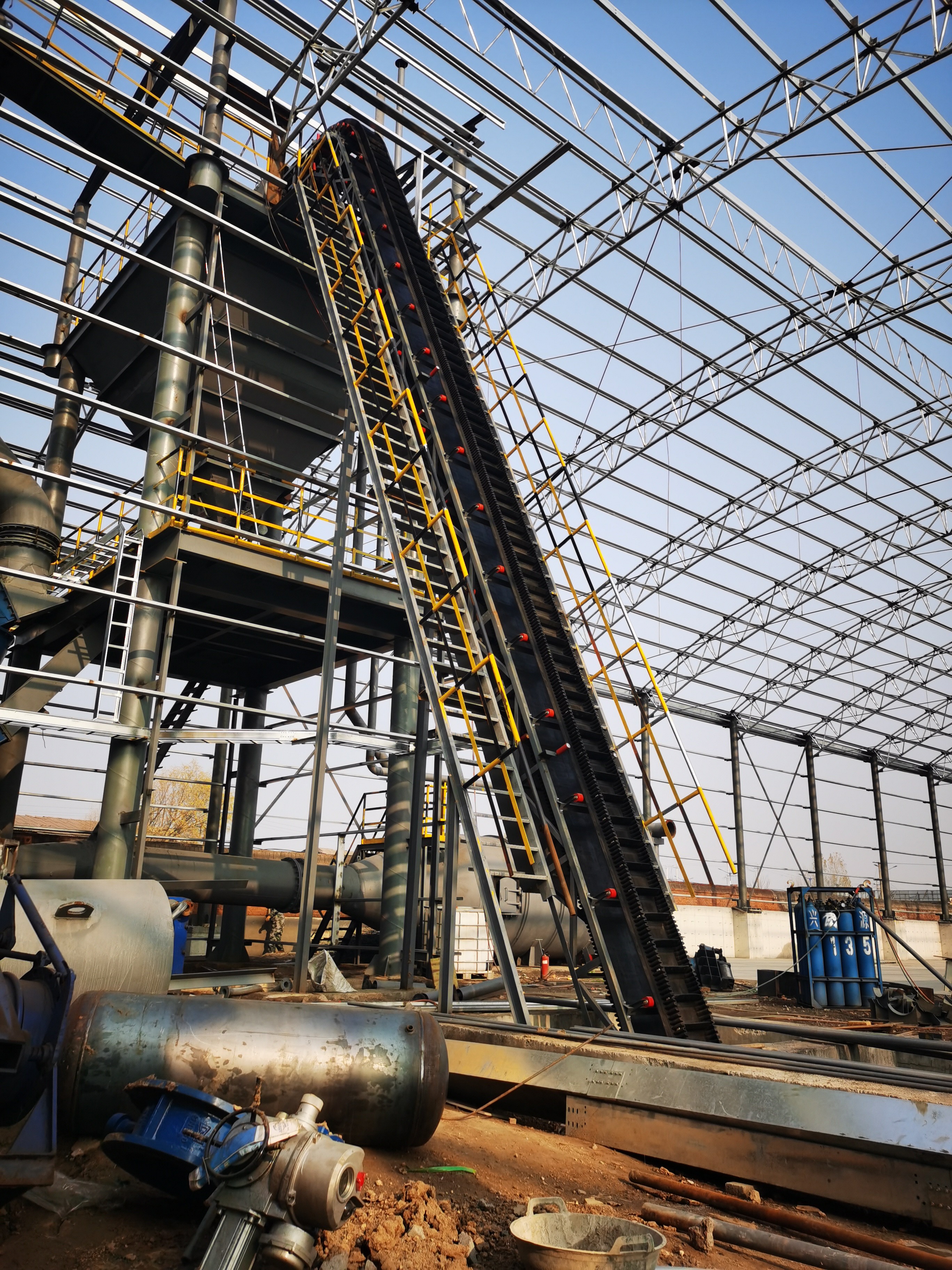

Fully sealed belt conveyorLearn More![Tangshan Steel Plant Project]( "Tangshan Steel Plant Project")
Tangshan Steel Plant ProjectLearn More![]()

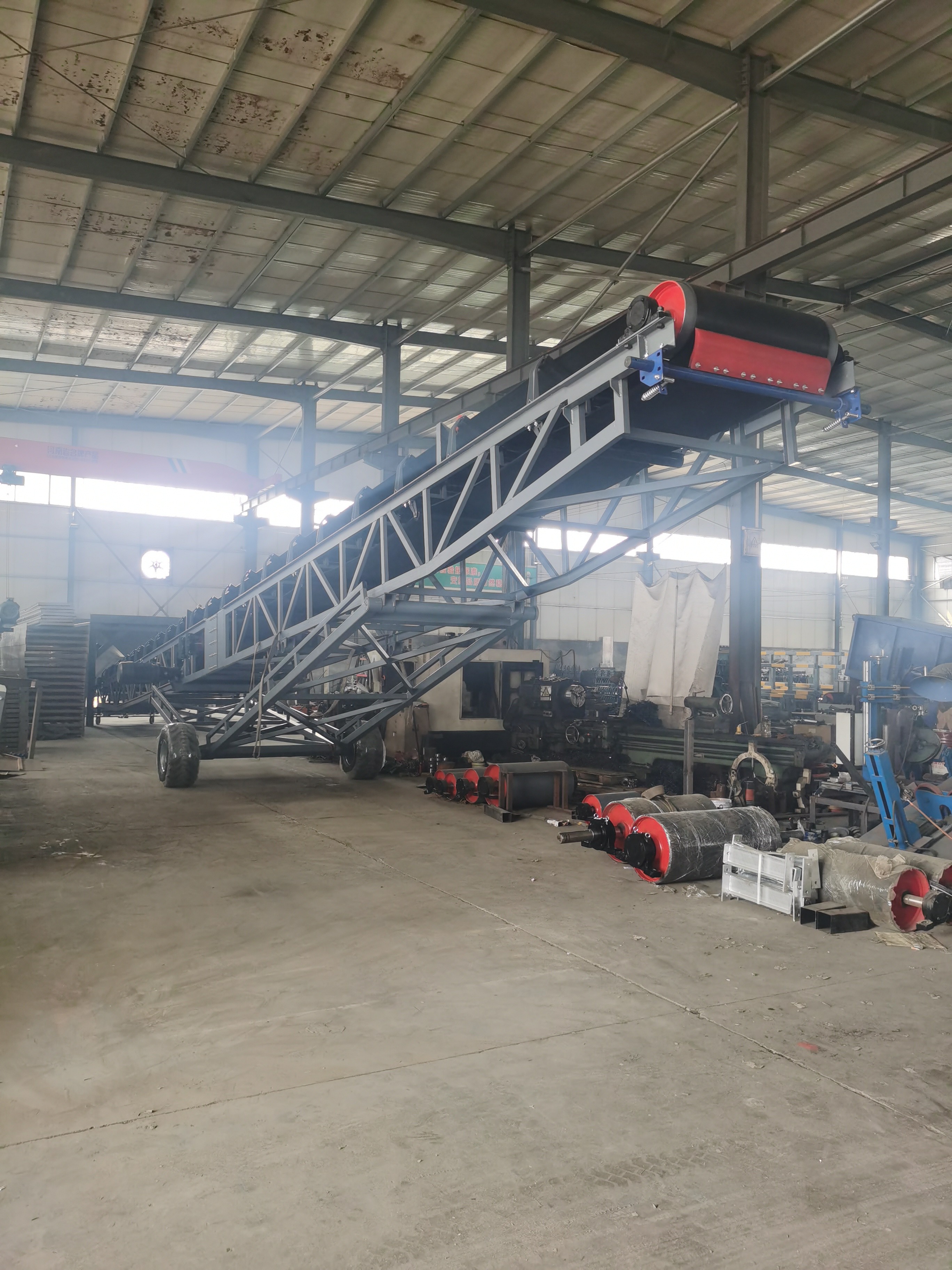

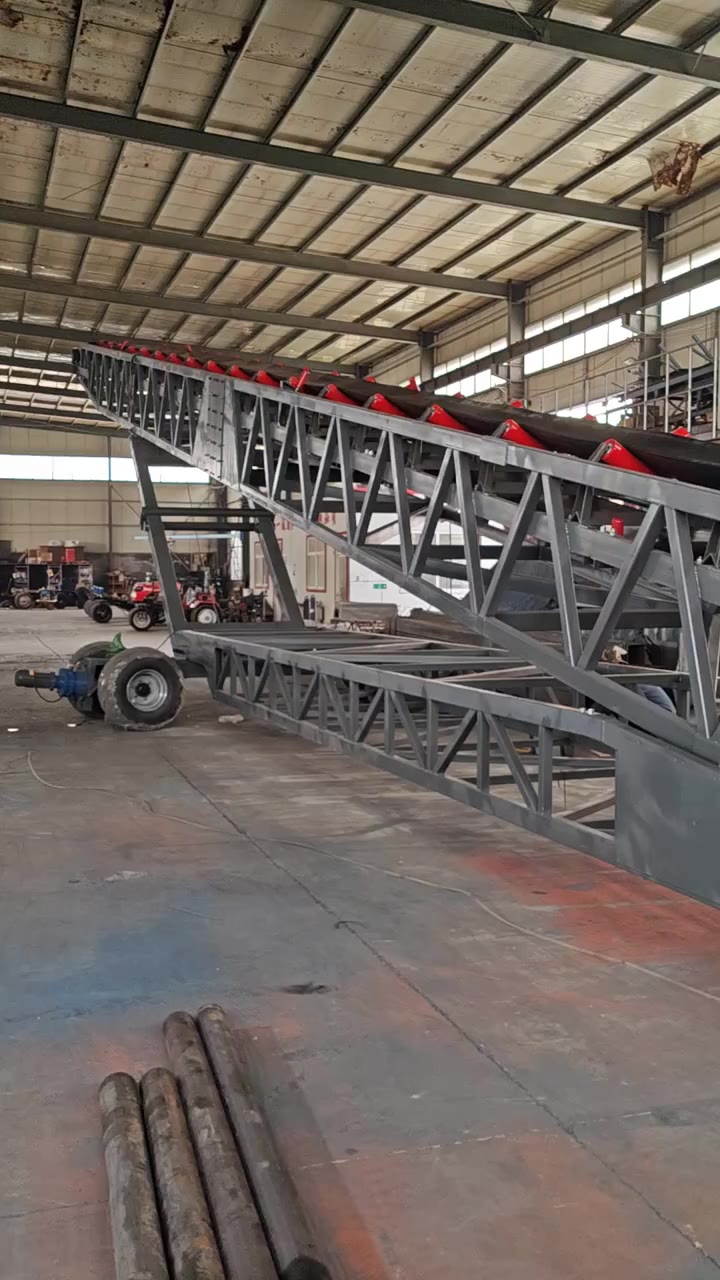

Rotating belt conveyorLearn More![Mobile belt conveyor]( "Mobile belt conveyor")

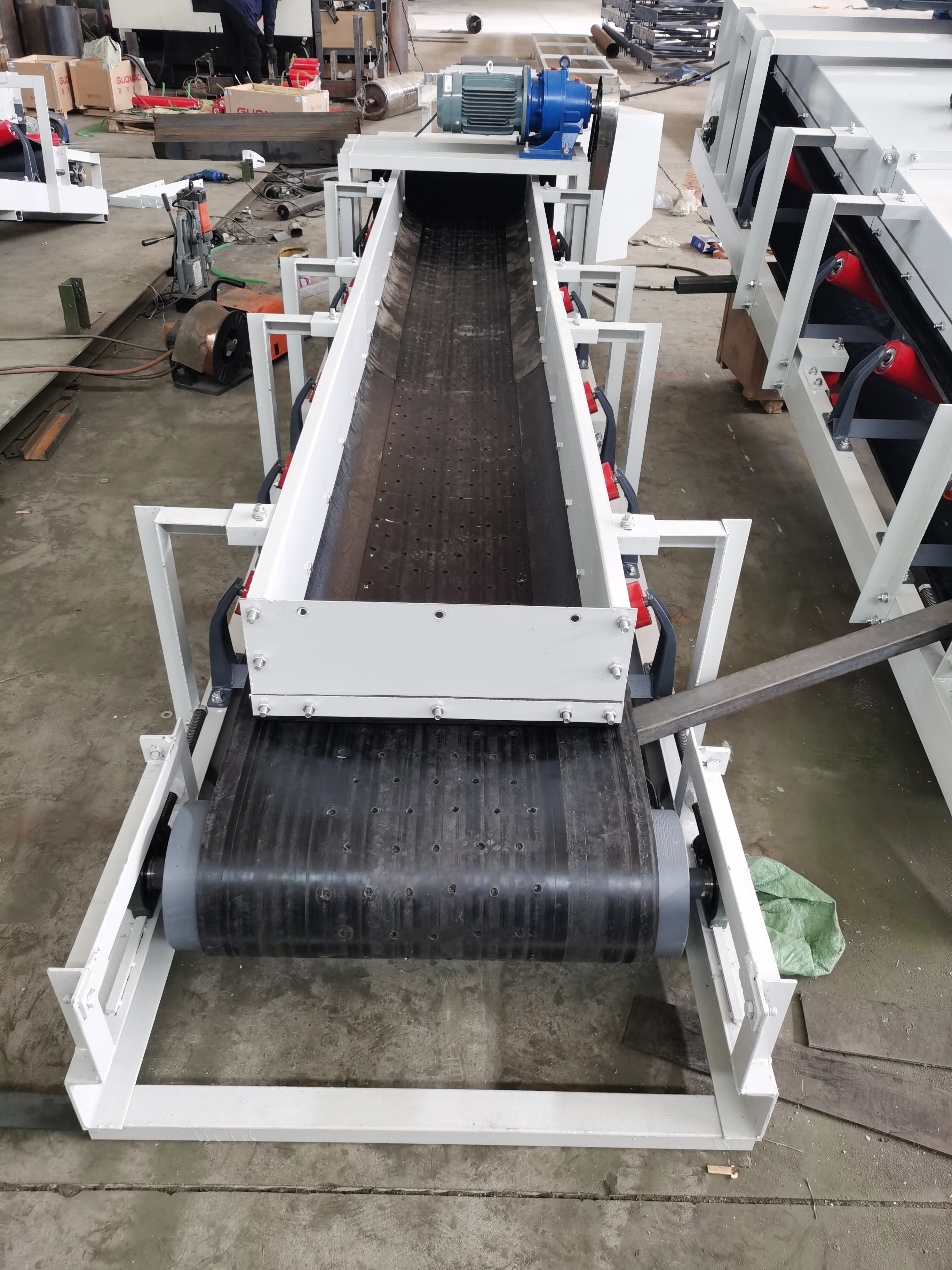

Mobile belt conveyorLearn More![Self-draining conveyor]( "Self-draining conveyor")

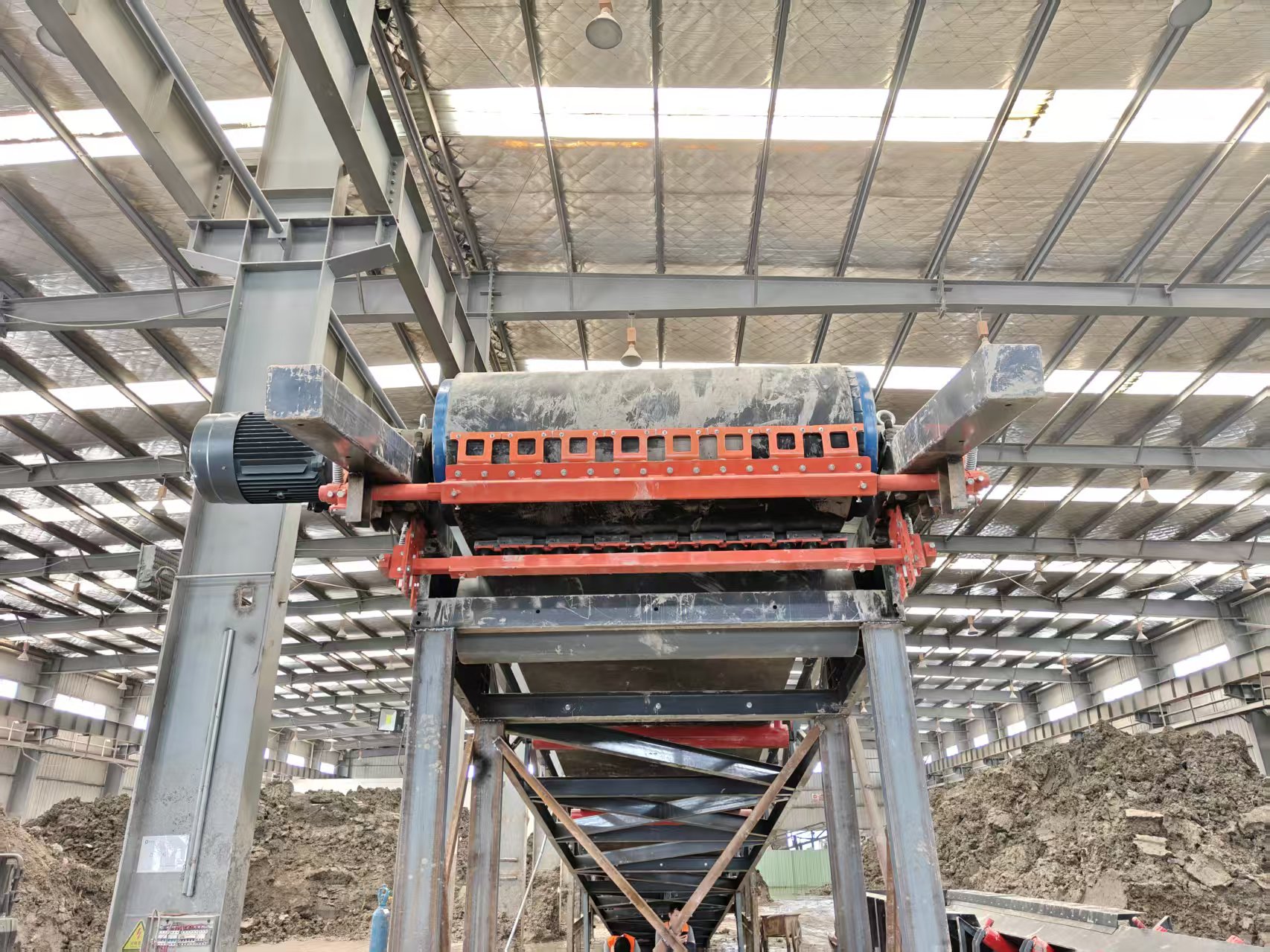

Self-draining conveyorLearn More![Sludge belt conveyor with viscosity]( "Sludge belt conveyor with viscosity")

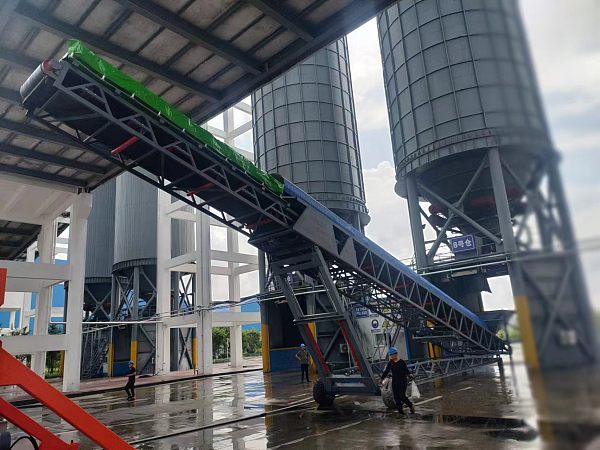

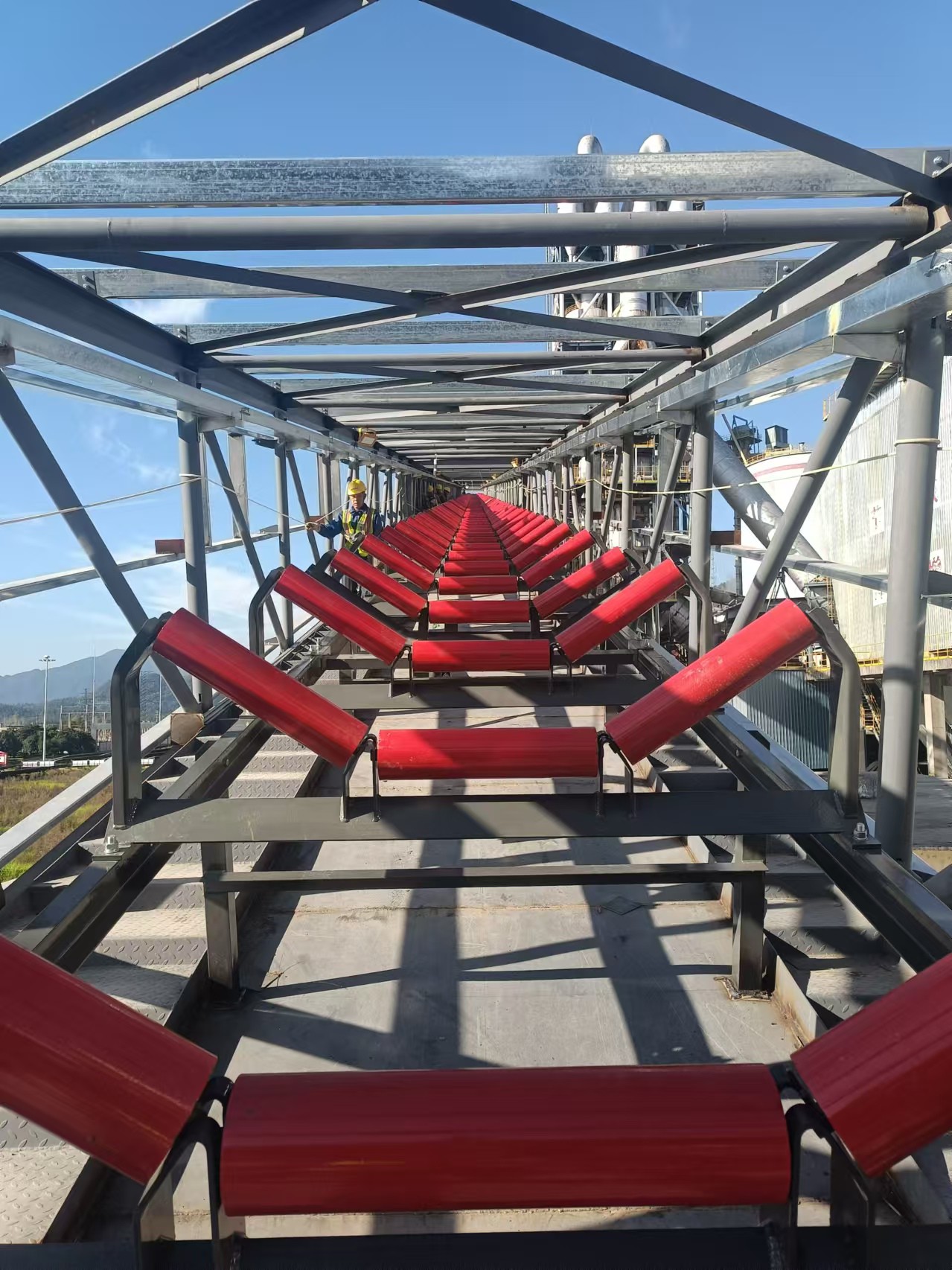

Sludge belt conveyor with viscosityLearn More![Yongfeng Cement Project Site]( "Yongfeng Cement Project Site")
Yongfeng Cement Project SiteLearn More
About US
Xuchang Machinery (Dezhou) Co., Ltd. is located in the Shiji Development Zone of Ningjin County, Dezhou City, Shandong Province—a region with excellent transportation connectivity. The company manufactures a wide range of conveying equipment, including TD75, DTII, and DTII(A) series fixed conveyors, mobile elevating conveyors, eco-friendly conveyors, sludge conveyors, mining conveyors, agricultural and livestock conveyors, workshop assembly lines, steep-incline conveyors, and roller conveyors.
Backed by a professional team of conveyor designers and holding multiple patents, the company ensures consistent product quality. Possessing export rights, the company manufactures products according to client specifications—whether domestic or international—adhering to standards such as DIN (Germany), AS (Australia), JIS (Japan), CEMA (USA), and GOST (Russia). Its products are exported to numerous countries and regions, including Indonesia, Laos, Myanmar, Vietnam, Thailand, Central Asia, the USA, Europe, Australia, Egypt, Kazakhstan, Kyrgyzstan, Ukraine, and Russia.
0
+
YEARS OF EXPERIENCE
0
+
CURRENT EMPLOYEE
200
+
COOPERATING CLIENT
0
+
PRODUCT SERIES
Company Strengths
Comprehensive coverage across the entire range, one-stop selection and matching services
It offers both standard fixed models such as TD75, DTI, and DTI(A), as well as non-standard models like mobile lifting, large inclination, rollers, and workshop assembly lines. These models cover multiple industries including mining, sludge, environmental protection, agriculture, and animal husbandry. Customers no longer need to purchase from multiple sources. From single machines to complete lines, all can be fully equipped in one step, reducing selection and connection costs.
Suitable for various industrial conditions and with strong ability for non-standard customization
For different working conditions such as heavy load in mines, sludge corrosion, environmental protection and dust prevention, agricultural and animal husbandry hygiene, and assembly line rhythm in workshops, customized designs can be made for the conveying volume, inclination angle, material, sealing, and moving method, providing "one industry-one solution" conveying solutions instead of a single standard product.
The structure is mature and reliable, with stable and durable operation.
The TD75, DTI, DTI(A) and other series adopt mature and standardized structures. The key components have a high degree of standardization and generalization, facilitating maintenance and spare parts supply. The models with features such as mobile lifting, large inclination angle, and rollers are optimized for frequent starting and stopping, changing angles, and heavy loads, resulting in low failure rates and long service life.
Full-line delivery and prompt after-sales response
From scheme design, production manufacturing to on-site installation and commissioning, we can provide full-line delivery capabilities; we have a wide range of common spare parts in stock, and our after-sales service is prompt, reducing downtime and waiting time. For continuous operation scenarios such as mining, sludge treatment, agriculture and animal husbandry, we can effectively ensure the continuity of customer production.
Core configuration flexible combination
Core configuration flexible combination
Compact structure, easy to install, high performance-to-price ratio for medium and short distance applications.
V-belt transmission with overload protection, resistant to shock, strong overload capacity.
Chain wheel and chain for low-speed transmission, moderate price, stable performance.
High transmission efficiency, optional reverse gear, suitable for long-distance and high-power applications.

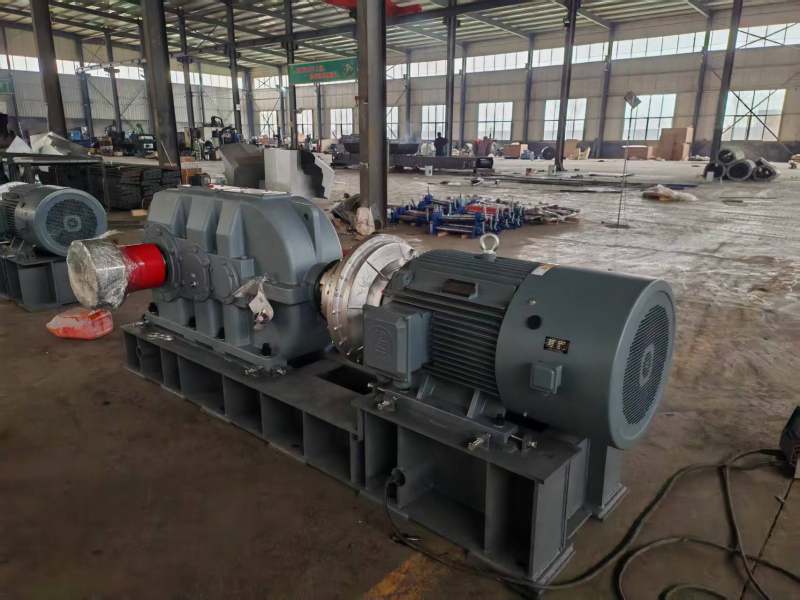

Brakes and backstops can be installed; the unit delivers high output torque, enabling the operation of belt conveyors designed for long-distance transport, high-capacity material handling, high power requirements, and harsh operating environments.

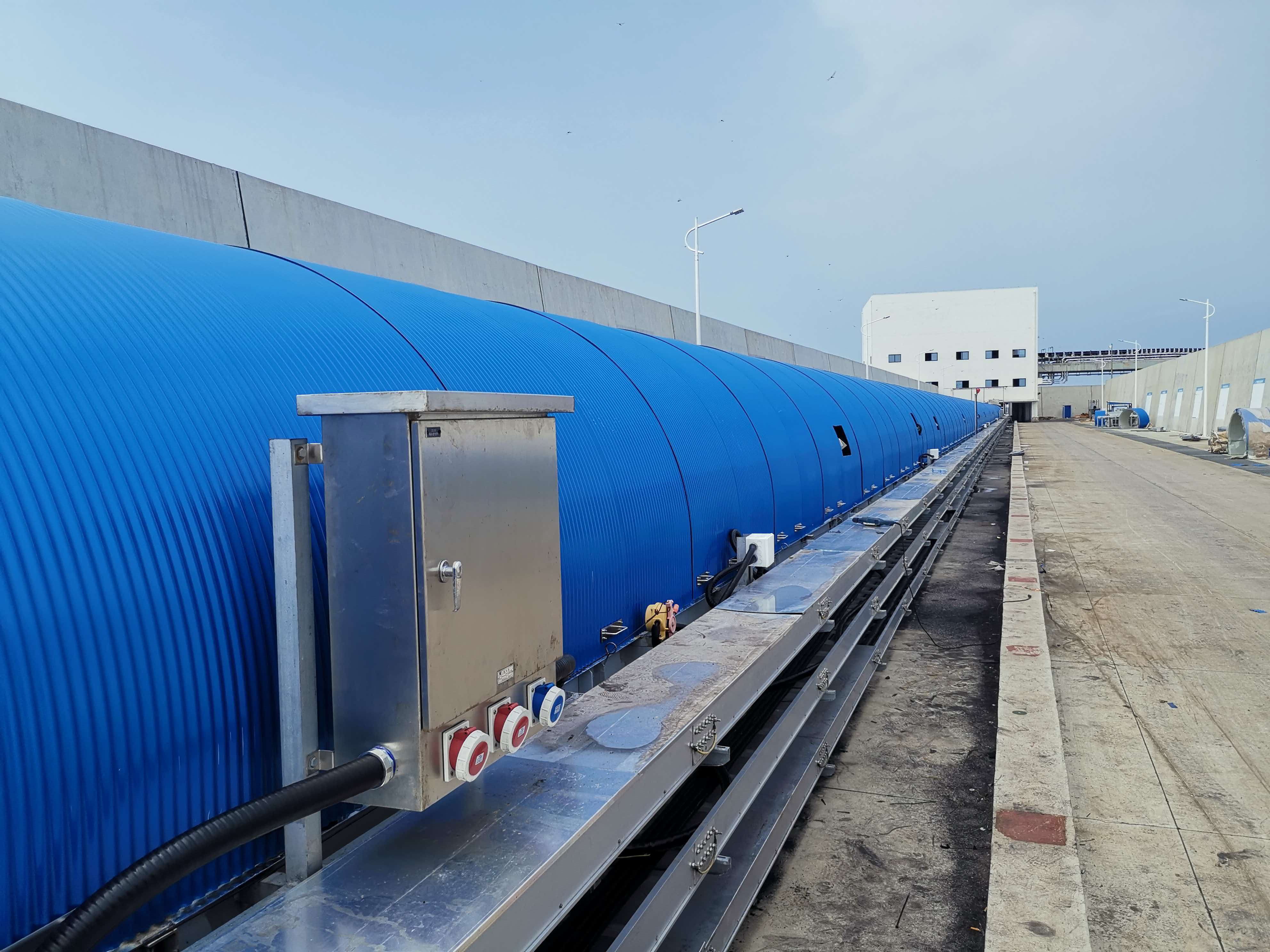

Made of corrugated colored steel sheet, with reasonable price for preventing rain and wind erosion. Suitable for sand and gravel quarries.
Laser-cut and bent, with French connection. Dust-proof, waterproof, and odor-proof. Can undergo negative pressure test. Suitable for garbage dumps and dust transportation.
Suitable for 0 to 18°, available in CC/NN/EP/ST belt cores and acid-resistant and heat-resistant types.
Suitable for 0 to 22°, mostly used in small belt machines, with CC/EP# cores.
Maximum transport angle is 30°, suitable for materials with large internal friction.
Suitable for 30 to 90°, the height of the spacer edge can be customized according to production volume.
Application areas

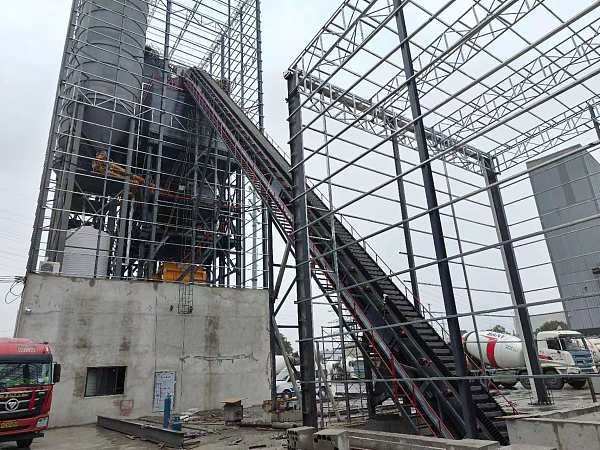

The sand and gravel aggregate industry
- The TD75 type, DTII type and DTII (A) type standard fixed belt conveyors are generally adopted. They are suitable for the transportation of sand, gravel, aggregates, powder materials and ores. The general material density is relatively high, ranging from 1.3 to 5 tons per cubic meter. The material particle size is not uniform, and the materials are sharp and hard, which are prone to scratching the conveyor belt or causing the conveyor belt to tear. Buffer beds or buffer idlers are equipped at the tail loading point to reduce the damage to the conveyor belt caused by the impact of the materials. The conveyor belt uses high-quality polyester canvas conveyor belt with extremely high tensile strength.

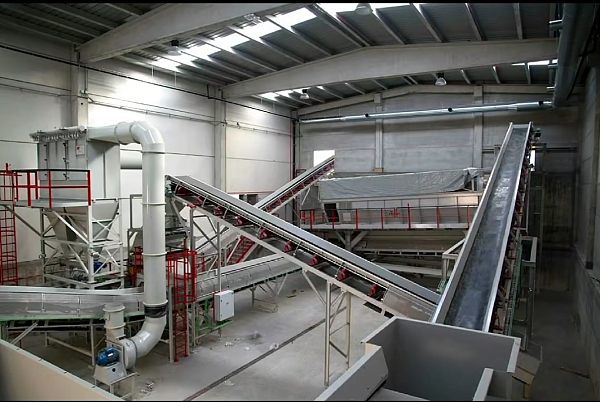

The waste management industry
- Suitable for the transportation of household waste, decomposed waste, kitchen waste, construction waste, and renovation waste, etc. Generally equipped with a full-process material guiding chute to prevent the materials from falling to the ground. An upper and lower sealing cover is added to reduce the leakage of odors, dust, garbage, etc.
At the heavy material section, a buffer idler group is added to effectively reduce the damage to the conveyor belt caused by the impact of the materials.

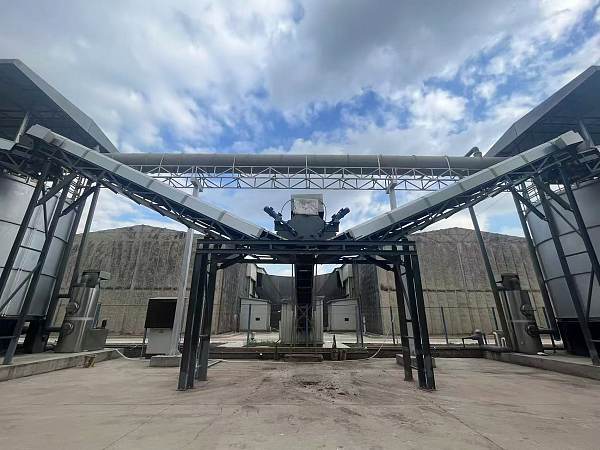

Sludge treatment industry
- Suitable for the transportation of sludge from water plants, river channels, municipal areas, etc. Generally equipped with devices such as sludge receiving bins and crushing grates. Depending on the specific industry, different corrosion-resistant solutions are provided. They can resist acids (such as hydrochloric acid, nitric acid, sulfuric acid, etc.), alkalis, and oils, etc. The sludge is relatively sticky and prone to sticking to the conveyor belt. Therefore, an H-shaped polyurethane cleaning device is added to achieve a better sludge scraping effect. In some scenarios, an integrated belt conveyor is designed. The support frame of the filter press and the belt conveyor are designed as an integrated unit, which significantly reduces the construction cost and improves the construction efficiency.
Dye industry; Graphene industry
- Suitable for the transportation of products after filtration by the filter press, as well as the transportation of dye raw materials and graphene raw materials. Mainly considering acid resistance. Below the filter press, a belt conveyor is used, and the receiving hopper is made of 304 stainless steel or carbon steel with a PP board lining, which greatly improves the anti-corrosion effect. The lower liquid collection tray is formed by one-time molding of PP board and has an arched design, which better discharges the filtrate and prevents the PP board from deforming due to heat.
Image source
Common types of conveyor belts
Outer ear canal band
Suitable for materials with high internal friction. The maximum transportation angle can reach up to 30°. Generally, nylon canvas (NN) and polyester canvas (EP) are used.
Inner bra strap
Suitable for small belt conveyors, with a general transportation angle of 0 - 22°. Generally, it is made of cotton canvas core (CC) or polyester canvas core (EP).

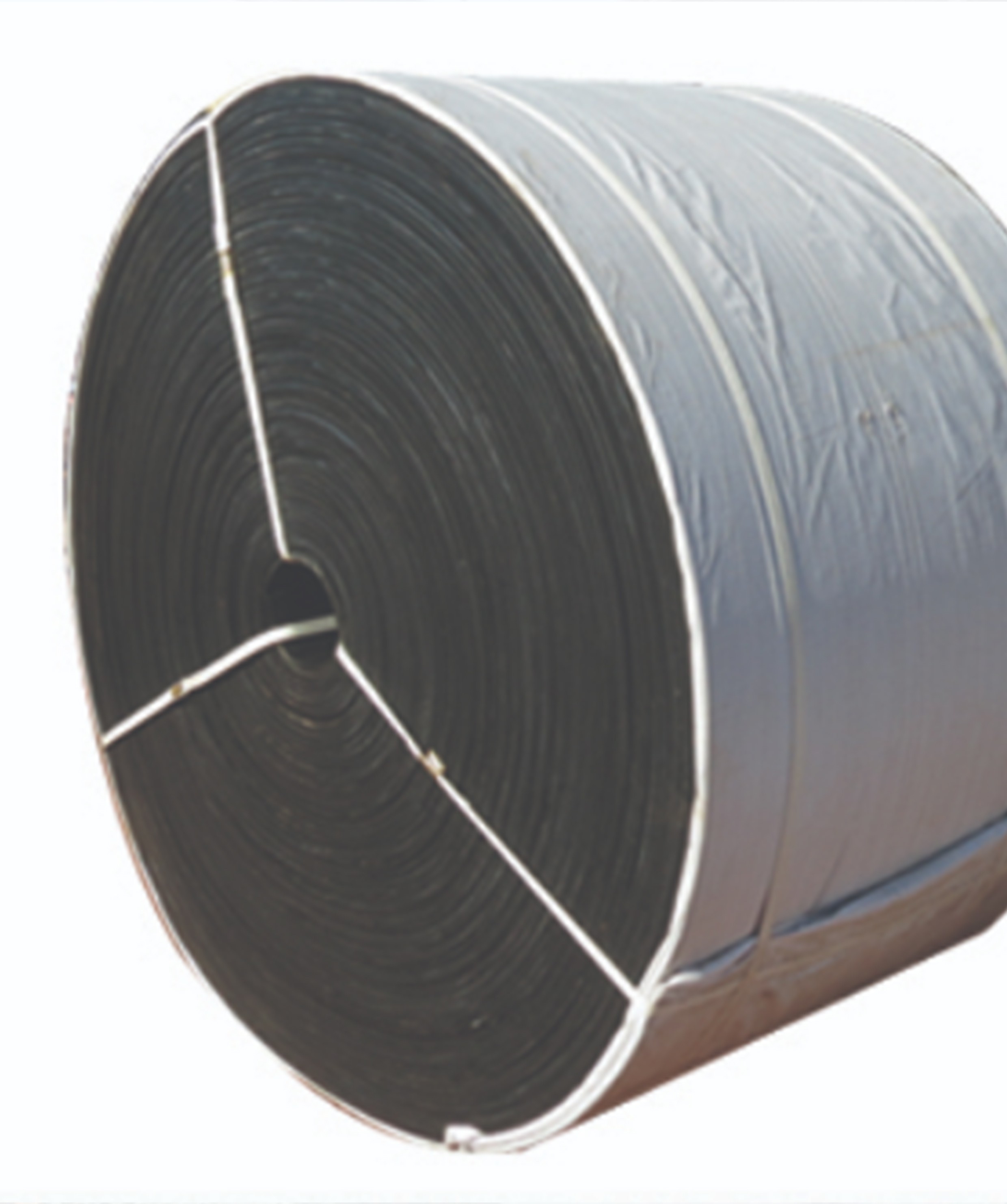

Flat belt

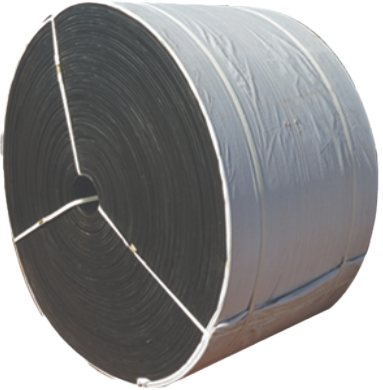

The application range is the widest. In terms of general material transportation, the angle is 0-18°. Depending on different working conditions, different core materials such as cotton canvas (CC), nylon canvas (NN), polyester canvas (EP), and steel wire rope (ST) can be selected. According to the degree of corrosion resistance, acid-resistant belts, alkali-resistant belts, and salt-resistant belts can be chosen; according to the different degrees of heat exposure, heat-resistant belts can be selected.

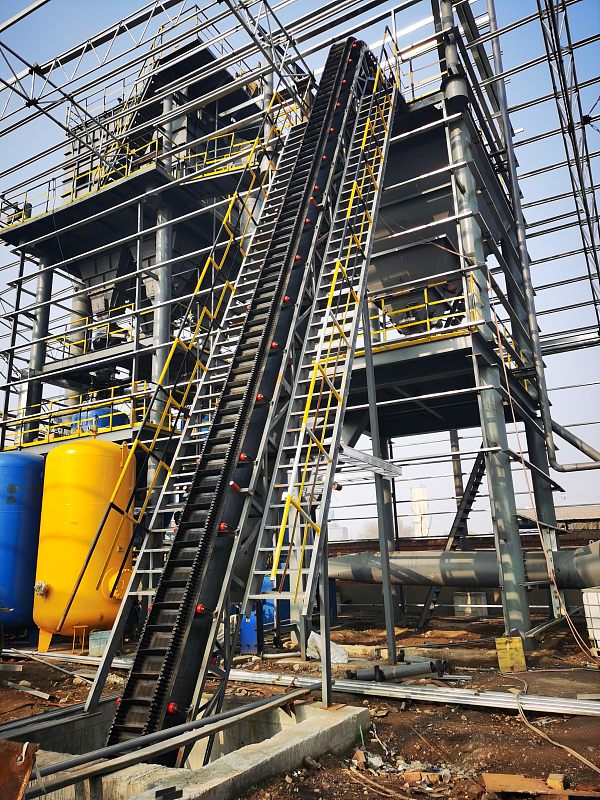

Skirt edge partition conveyor belt
Suitable for transportation scenarios with angles ranging from 30 to 90 degrees. The base plate is equipped with a partition board and skirt edge.
It effectively realizes the large-angle lifting of materials. Depending on the production volume, the height of the partition board and skirt edge can be customized.
Exporting overseas, serving global customers
Exporting overseas, serving global customers
Our products are exported to more than 20 countries and regions in Southeast Asia, the Middle East, South Asia, Latin America, and Africa, and are highly praised by customers.
We cordially invite agents from all countries and regions to join us in pursuing mutual development.
You can leave your purchasing requirements. We believe that our brand will expand the market and bring more profits to our customers. We look forward to becoming your ideal partner.
