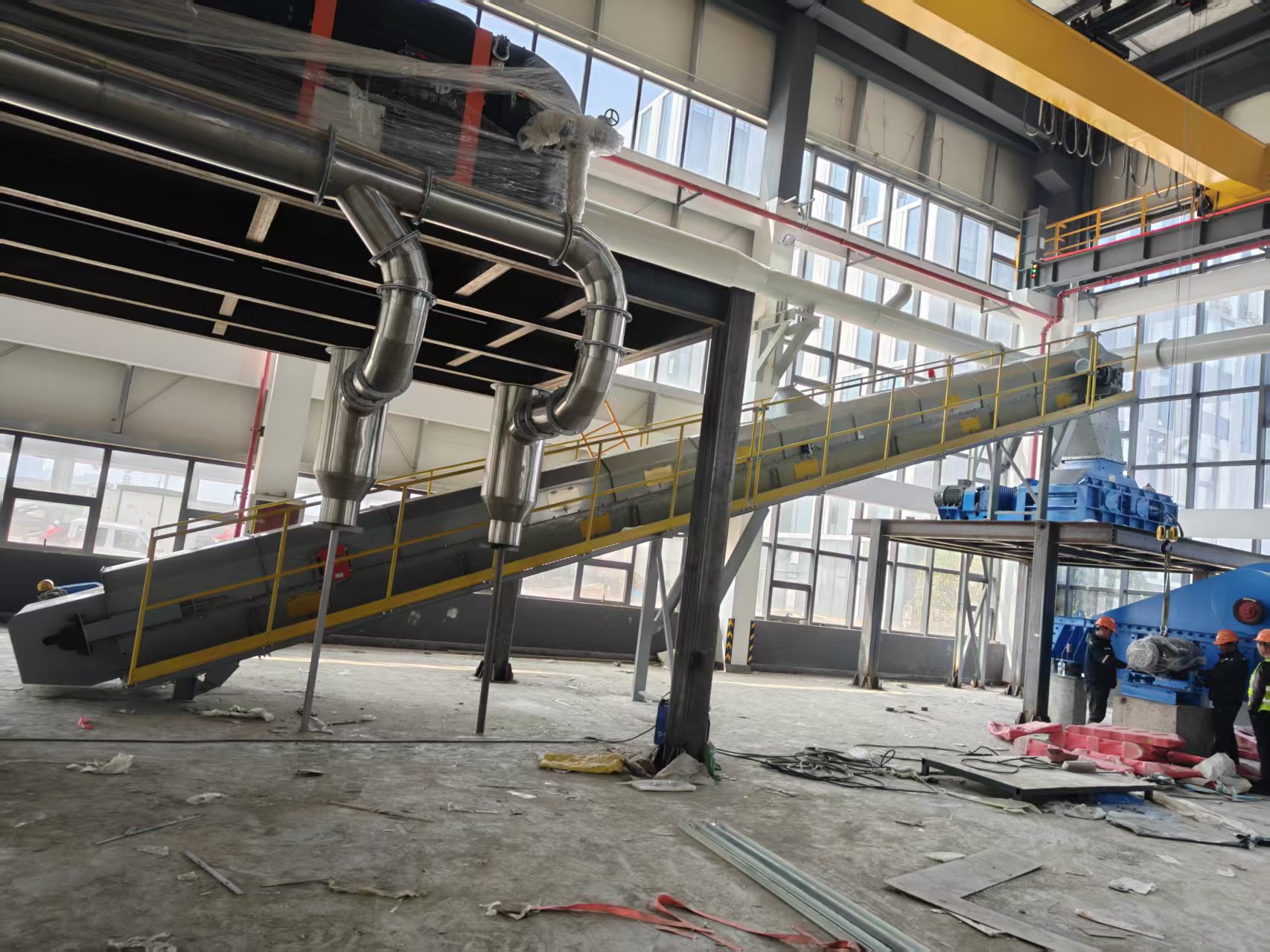

Fully sealed belt conveyor

›

‹

›

Fully sealed belt conveyor

◉ Product Introduction

Fully sealed belt conveyor is an environmentally friendly conveying equipment developed on the basis of ordinary belt conveyor. The conveyor belt is fully enclosed within a closed shell - both the carrying section and the return section are equipped with sealed covers, and the inlet and outlet are equipped with guide grooves and sealed curtains. The material runs in a closed channel from the receiving to the discharging, preventing dust from escaping, rainwater from entering, and material leakage. The equipment can be arranged horizontally or obliquely, supporting the installation of elevated trusses. The maintenance section on the side of the shell can be quickly opened and closed, making daily maintenance as convenient as traditional belt conveyors. It combines the economy of belt conveyors with the environmental friendliness of tubular/enclosed conveying.
Inquire Now

◉ Main Features

*Fully enclosed zero dust: The bearing section and return section are sealed with dual enclosures, and combined with the inlet and outlet curtain guide groove, the unorganized emission of dust is almost zero, easily passing environmental protection acceptance;
*Rainproof, moisture-proof, and anti scattering materials: The materials are not exposed to wind and rain throughout the entire process, and the outdoor cross road and cross yard layout can also ensure the quality of materials such as coal, grain, and mineral powder;
*Convenient maintenance: The casing is designed with segmented hinges or quick disassembly, allowing for easy access to the entire belt and rollers upon opening. Cleaning and roller replacement do not require complete disassembly of the casing;
*Flexible layout: It can be installed in various ways such as on the ground, elevated trusses, and corridors, and can span over roads, factories, and equipment to save land;
*Economic operation: lower cost and energy consumption compared to pipe conveyor and pneumatic conveying. The rollers and drums are universal components, and maintenance costs are comparable to traditional belt conveyors;
*Complete supporting facilities: Optional full line protection switches and dust removal interfaces such as deviation, slippage, blockage, and rope pulling can be selected, and connected to the central control interlocking operation.

◉Specification parameters (common range)


ItemParameter Range
Belt width500 / 650 / 800 / 1000 / 1200 / 1400 mm
Conveying length6 ~ 200 m (longer distances achievable with multiple units in series)
Conveying capacityApprox. 50 ~ 1500 t/h (lightweight materials converted by bulk density)
Belt speed1.0 ~ 2.5 m/s (variable frequency speed control optional)
Sealing formFully sealed with carrying and return double covers / semi-cover optional


◉ Applicable scenarios

Widely used in industries such as cement, electricity, chemical, grain, and ports for enclosed transportation of powdered and granular materials: such as cement plant clinker, mineral powder, and dust collection ash transportation, power plant coal powder and ash transportation, grain drying and storage raw grain entering the warehouse, transportation between vehicles for chemical raw materials and dust prone materials, as well as occasions with high requirements for odor and dust control such as garbage treatment and sludge drying. For projects with strict environmental requirements, materials that are sensitive to rain and dust, and conveyor lines that need to cross outdoor spaces, fully sealed belt conveyors are the most economical and reliable choice.
