• Steel plant power plant belt conveyor

‹

›

‹

›

Steel plant power plant belt conveyor

◉ Product Introduction

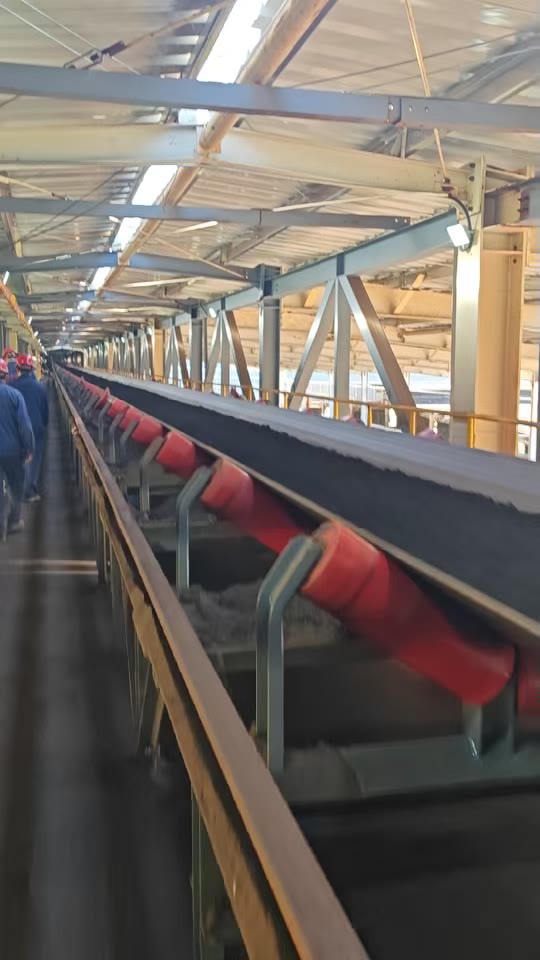

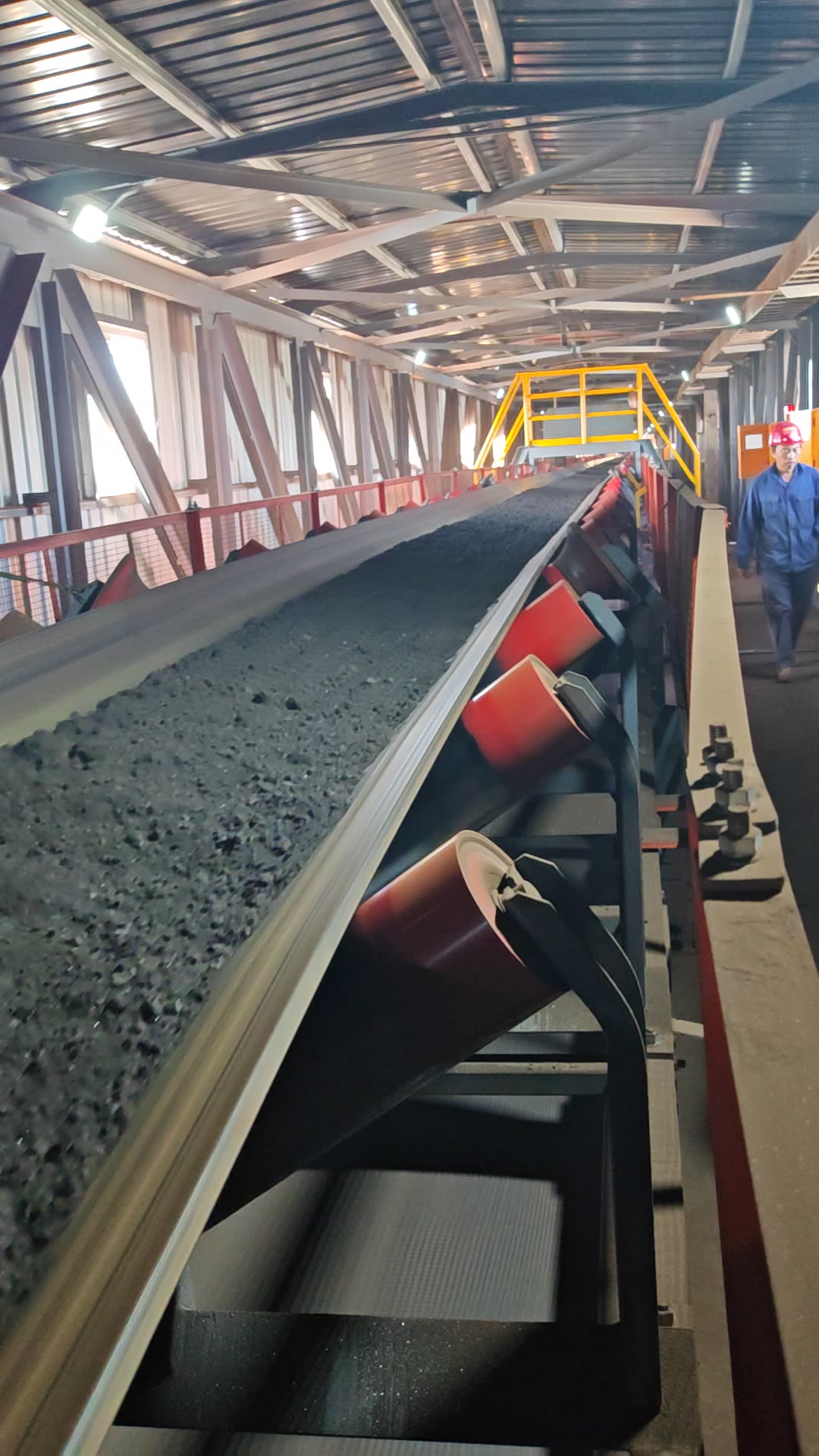

Designed for bulk material handling in the metallurgical and power industries, these heavy-duty belt conveyors—based on the DTII/A universal standard—feature frames, idlers, and pulleys selected specifically for heavy-load operating conditions. They are capable of the continuous, high-volume, long-distance transport of materials such as coal, coke, sintered ore, limestone, and ash. The system supports ground-level, elevated truss, or enclosed gallery layouts, as well as multi-point loading, multi-point unloading, and intermediate drive configurations, serving as core equipment for coal and material handling systems in steel mills and power plants.
Inquire Now

◉ Main Features

*Heavy-Duty & Long-Life Design: Configured for heavy-duty operations with thickened belts, impact idlers, and large-diameter pulleys, ensuring high reliability during continuous operation;
*High-Temperature Material Handling: Heat-resistant belts are available to handle high-temperature materials such as sintered ore and hot ash/slag;
*Long-Distance & High-Capacity Transport: Single-unit conveying lengths range from tens to hundreds of meters, offering high throughput and low operating costs;
*Comprehensive System Integration: Compatible with head chutes, material guide chutes, plow dischargers, electronic scales, and magnetic separators; supports integration into DCS for centralized control;
*Environmentally Friendly Configuration: Options include enclosed galleries, rain covers, and spray-based dust suppression systems to meet plant environmental standards.

◉Specification parameters (common range)


ItemParameter Range
Belt width650 / 800 / 1000 / 1200 / 1400 / 1600 mm
Conveying length10 ~ 500 m (multi-point drive available for long distances)
Conveying capacityApprox. 100 ~ 3000 t/h
Belt speed1.0 ~ 3.15 m/s







◉ Applicable scenarios

It is primarily used in coal-handling systems at thermal power plants; the transport of coke, sinter, and flux at steel plants; ash and slag removal systems; and coal transfer operations at port terminals serving power plants. It is also suitable for the in-plant transport of bulk materials in chemical and building material plants, serving as a core piece of equipment for various industrial material-handling lines.
