Mobile fabric cart

◉ Product Introduction

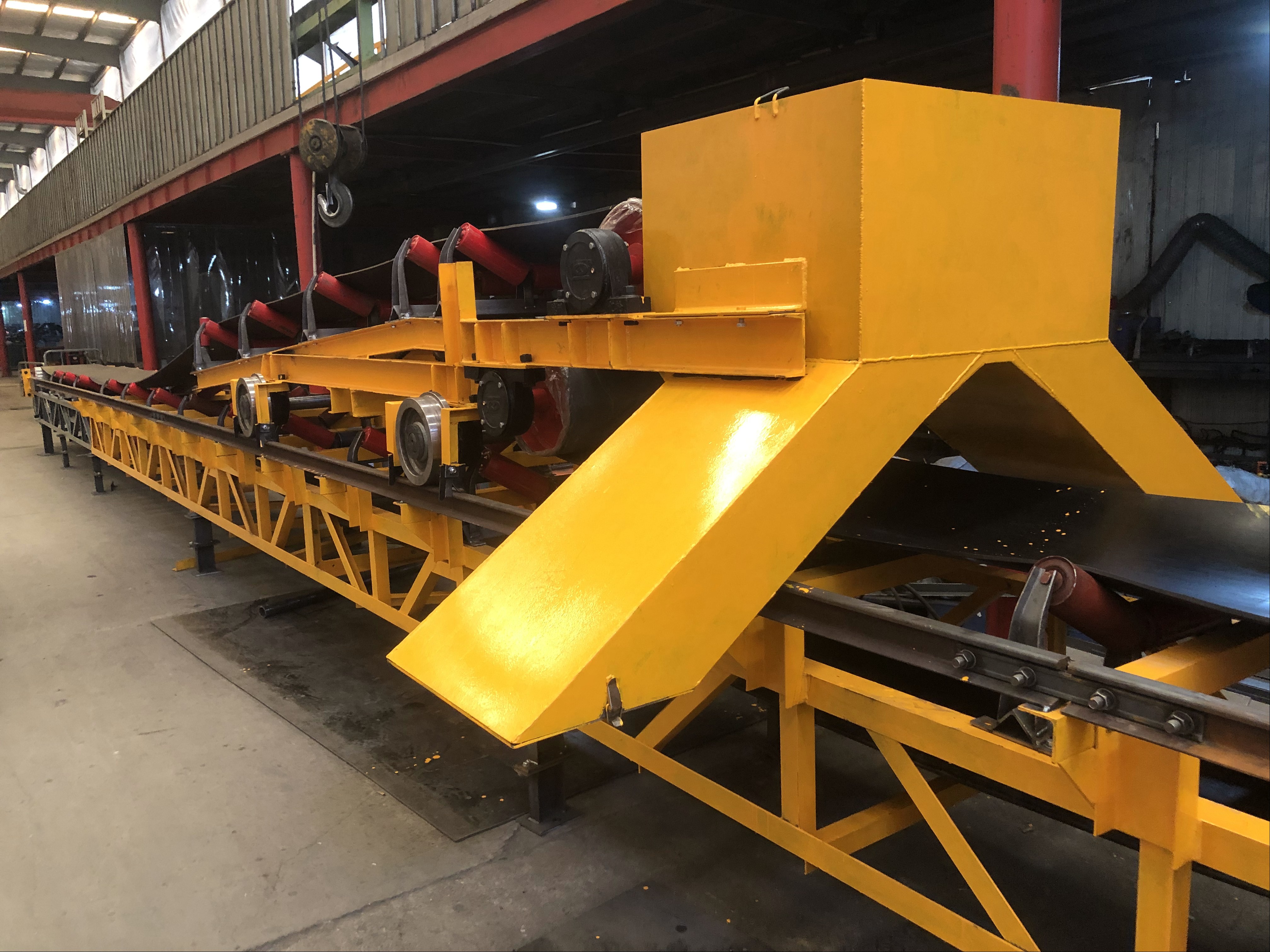

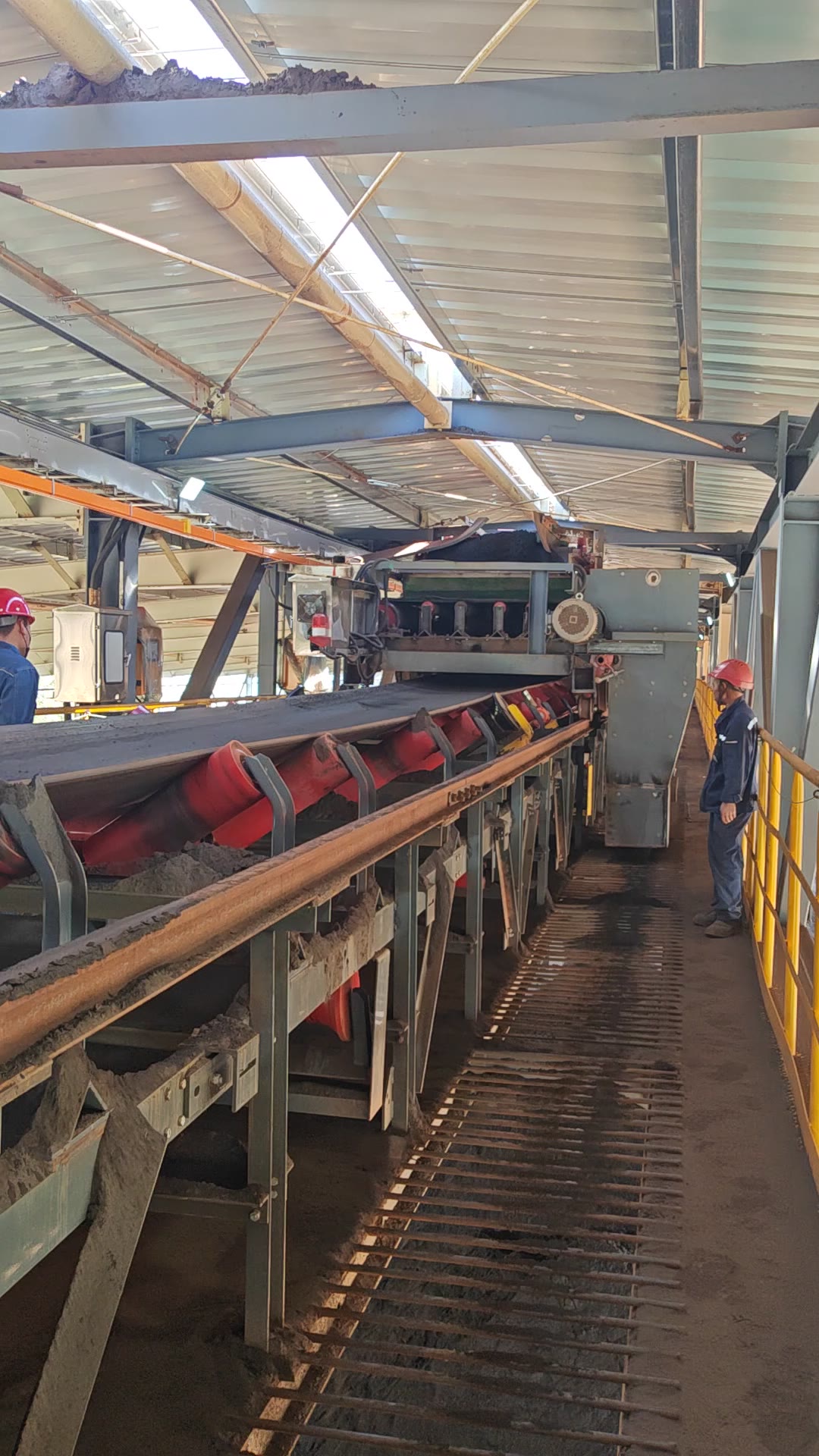

The mobile fabric trolley is a walking unloading equipment installed above the main belt conveyor. The small car consists of a frame, a material receiving funnel, double-sided discharge chutes (or plows), and an electric walking mechanism, which travels back and forth along the track above the main belt: the main belt continuously transports materials into the small car, and the small car evenly throws the materials into the material bin along the belt, the strip material yard or workshop floor at intervals between the material bins, achieving "one line, multiple points, uniform distribution". One fabric cart can replace multiple fixed feeding points and multiple branch belts along the way, making it an economical solution for strip storage yards and multi bin material warehouses.
Inquire Now

◉ Main Features

*One line multi warehouse fabric: The trolley travels along the main belt throughout the entire process, and unloads materials at any position or during travel. One conveyor line can supply materials to multiple warehouses along the line;
*Uniform fabric: The travel speed and discharge volume can be adjusted, and the materials are evenly stacked along the length of the silo to avoid segregation caused by concentrated stacking at a single point;
*Bidirectional unloading: The funnel is equipped with double-sided branching chutes (or electric reversing mechanisms) below, which can alternately discharge materials to the two side silos, or can be fixed on one side;
*Stable and reliable walking: electrically driven, wheel track type walking, automatic reversing with limit positions at both ends of the stroke, supporting remote or central control operation;
*Linkage with the main belt: The trolley is electrically interlocked with the main belt, and the start stop operation does not affect the continuous operation of the main belt. The sealing guide groove at the material receiving point does not scatter material.

◉Specification parameters (common range)


ItemParameter Range
Compatible belt width500 / 650 / 800 / 1000 / 1200 mm
Traveling stroke5 ~ 60 m (customized according to silo/stockyard length)
Throughput capacityApprox. 30 ~ 500 t/h
Traveling speed0.2 ~ 0.8 m/s (variable frequency adjustable)
Discharge methodDouble-side chute / single-side reversing / plow-type optional


◉ Applicable scenarios

Widely used for grain storage with multi-point feeding along the warehouse, multi warehouse batching in feed mills and flour mills, stacking of materials along the way in coal mines and port strip yards, multi warehouse feeding in cement and chemical enterprises, and distribution of materials to multiple feeding points on a main belt in the workshop.
