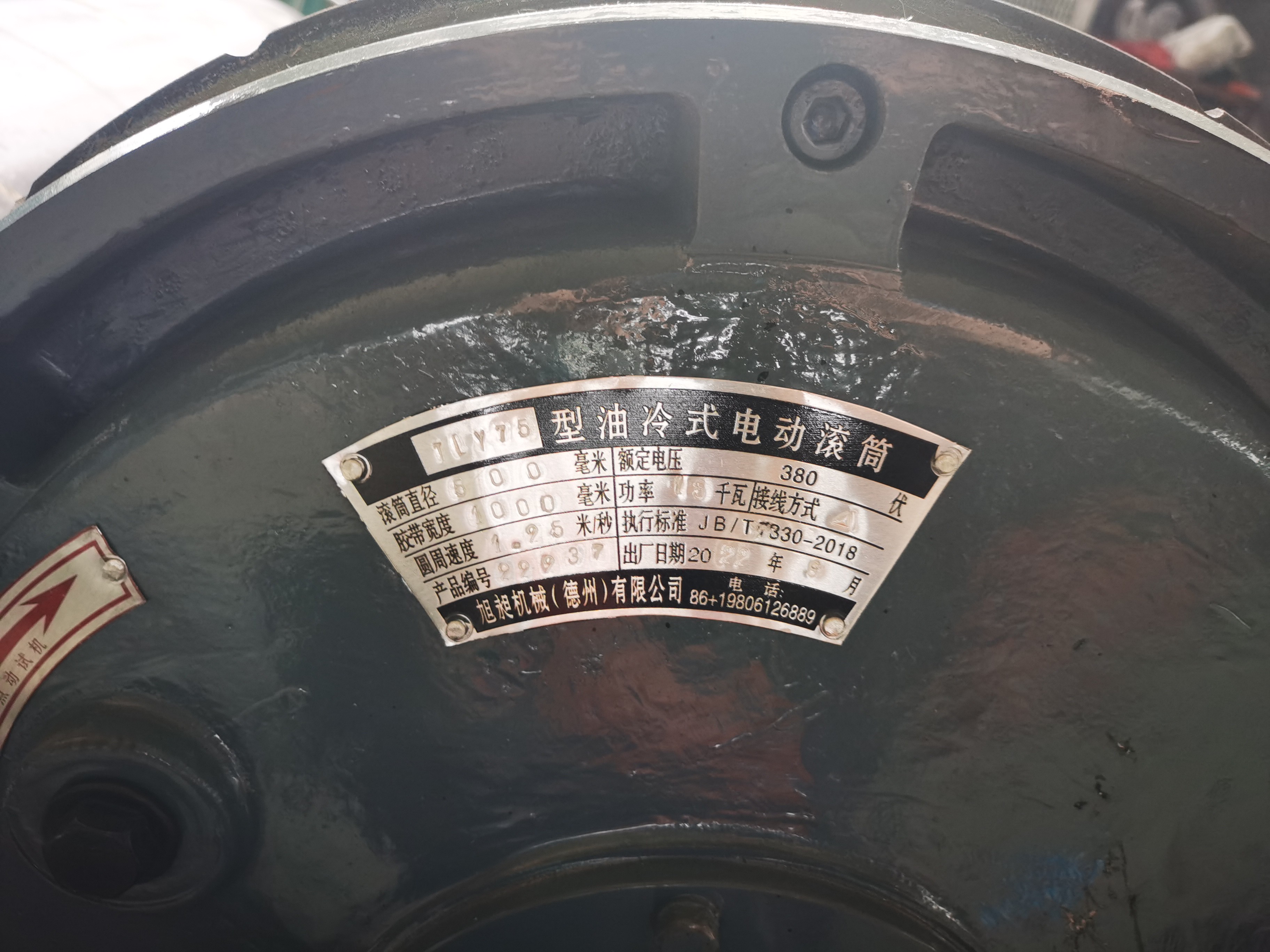

◉ Product Introduction

The electric drum integrates the motor and reduction mechanism into the drum body, which is a driving component that combines the motor and drum. Represented by oil cooling: the cooling oil rotates with the cylinder to take away the heat of the motor, with good heat dissipation and strong overload capacity; Eliminating a complete set of external drive devices such as motors, couplings, reducers, and drive frames, it is the most popular driving method for small and medium-sized conveyors due to its small footprint, minimal installation, and dust-proof sealing.
Inquire Now

◉ Main Features

*Compact structure : Integrated drive, no exposed transmission components, saves space in the drive station, and has a clean and safe appearance;
*Sealed, dustproof and waterproof: The motor and transmission components are fully enclosed in the cylinder, suitable for harsh environments such as dust, rain, snow, and humidity;
*Easy to install : Simply fix the shaft seat and connect it to power to operate, and replacement and maintenance are much faster than external drives;
*Reliable oil cooling and heat dissipation: Oil immersed cooling+cycloidal/gear transmission, low temperature rise during continuous operation, long service life;
*Complete variety : Oil cooled, oil immersed, and air-cooled options are available, and can be customized with reverse check, explosion-proof, and variable frequency requirements.

◉Specification parameters (common range)


ItemParameter Range
Pulley diameter215 / 250 / 320 / 400 / 500 / 630 / 800 mm
Compatible belt width400 ~ 1400 mm
Power0.55 ~ 45 kW
Belt speed0.3 ~ 2.0 m/s (customizable)
Load-carrying conveying capacityApprox. 10 ~ 500 t/h


◉ Applicable scenarios

Widely used as a head drive for small and medium-sized belt conveyors in industries such as grain, feed, packaging, mining, and chemical, it is particularly suitable for mobile belt conveyors, short distance conveyors in workshops, food grade grain conveyor lines, and drive applications with limited space and maintenance requirements.
