◉ Product Introduction

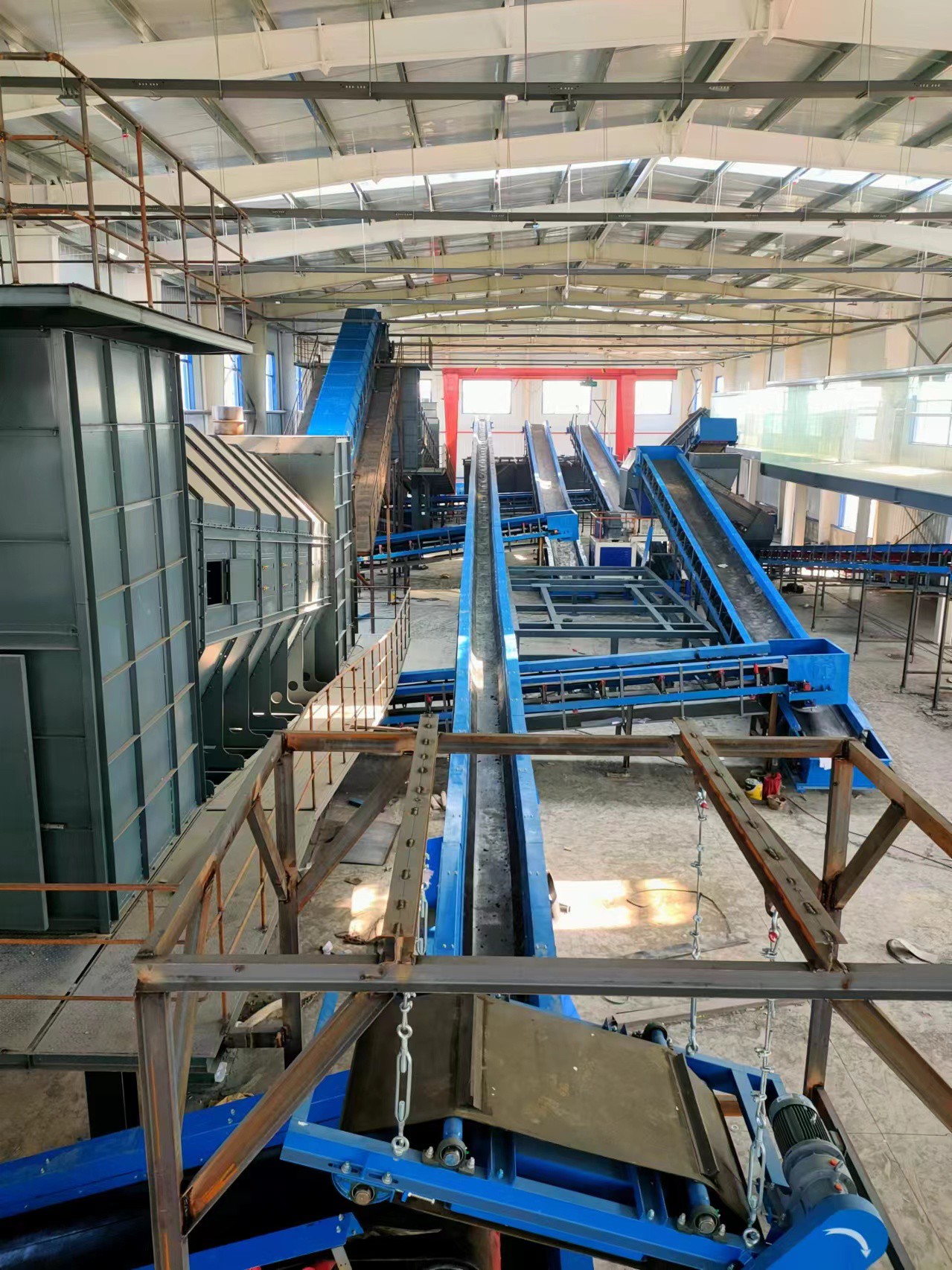

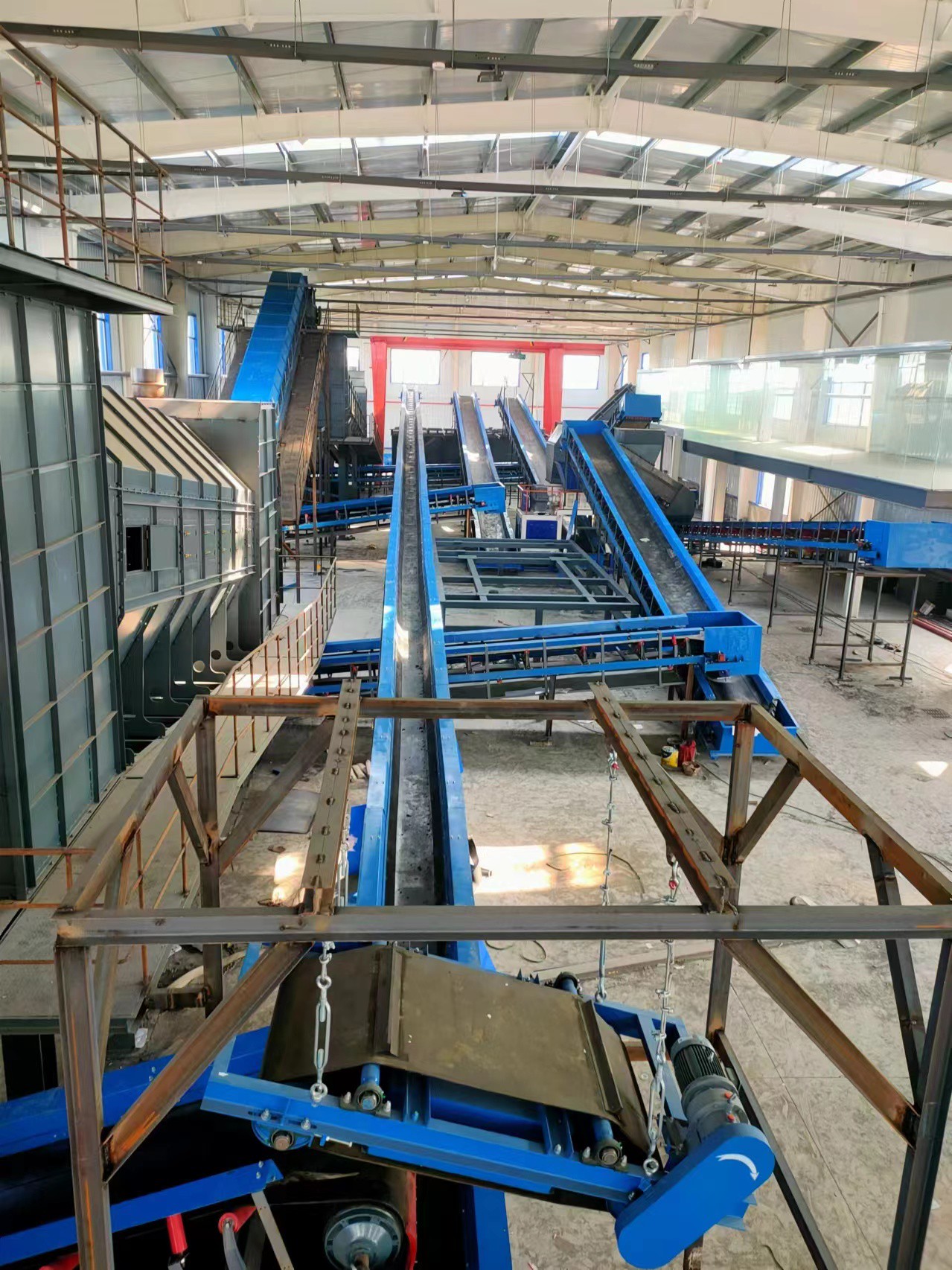

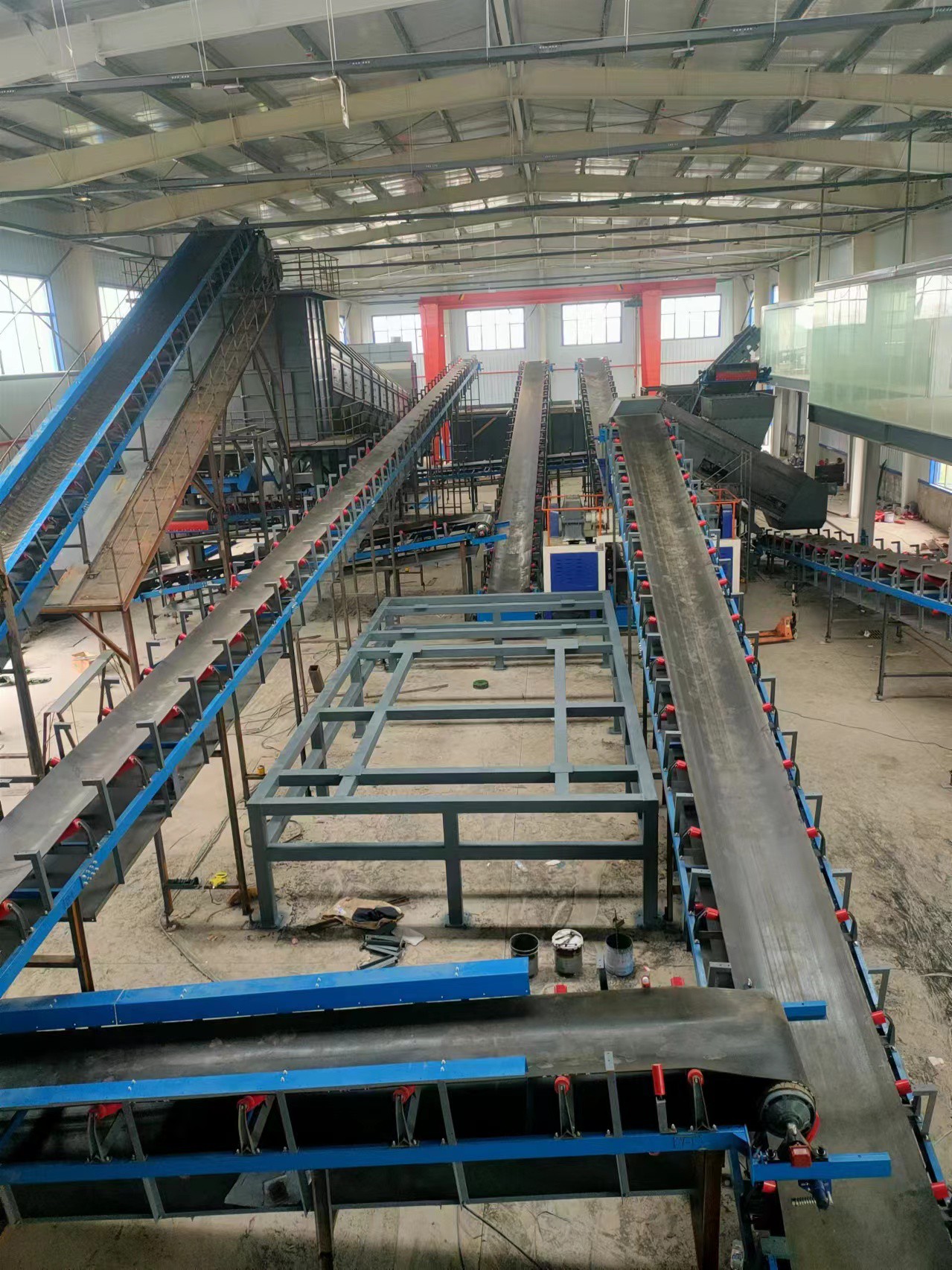

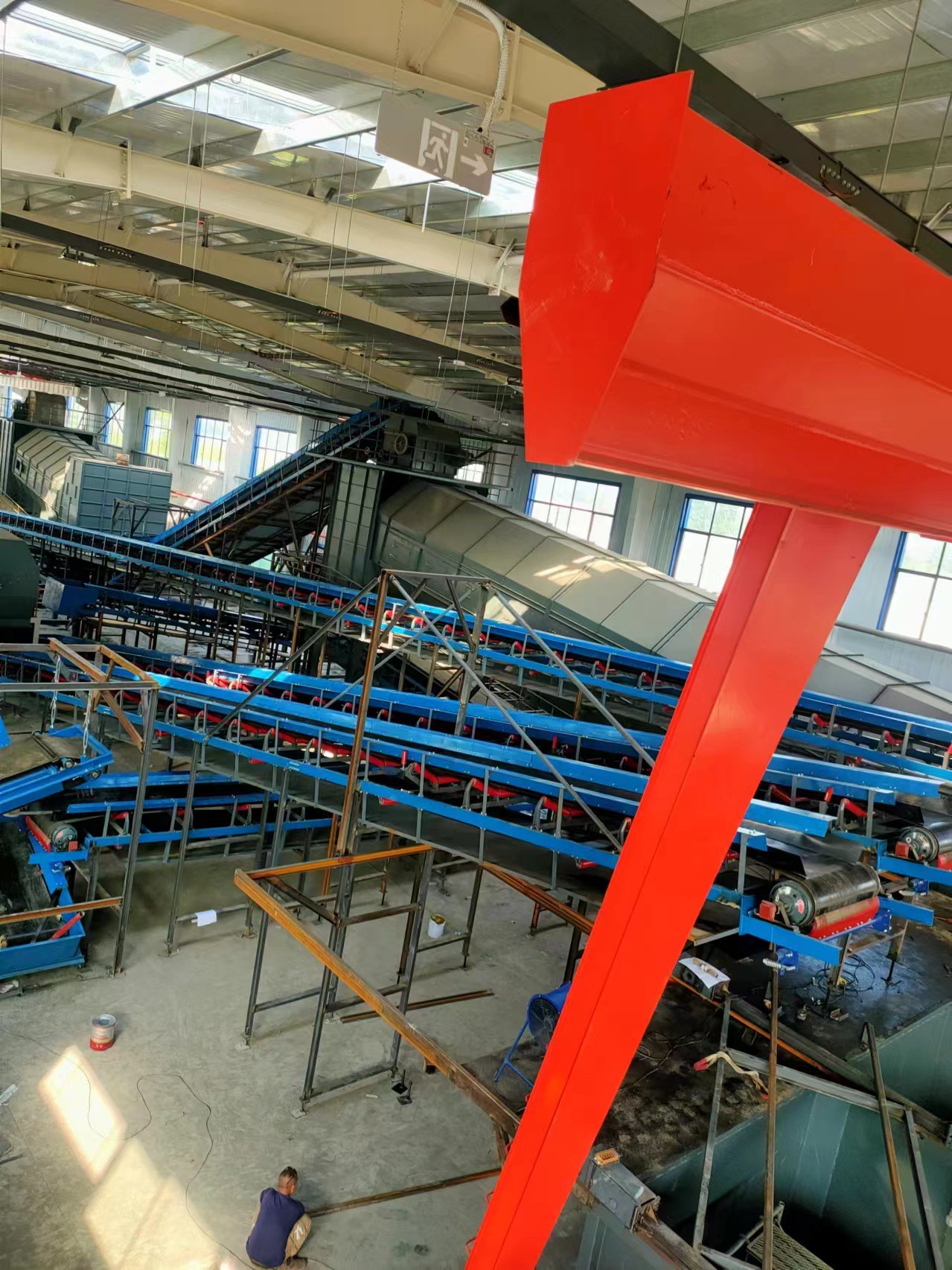

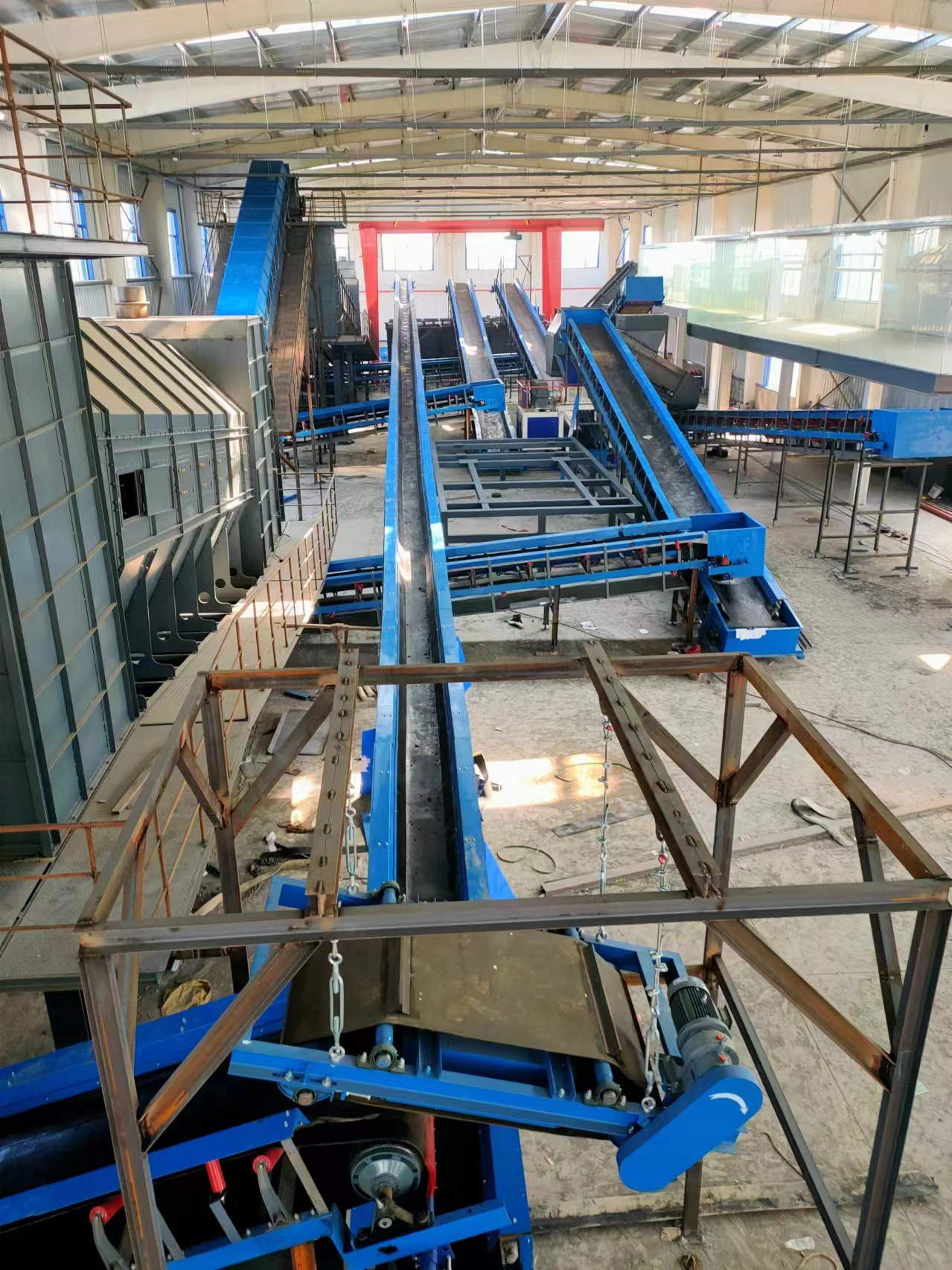

Garbage sorting conveyor is a supporting equipment for the transportation and sorting of household waste classification and construction waste resource utilization production lines. The system consists of a feeding belt, a manual sorting platform belt, a magnetic/air separation connection belt, and a discharge belt. Operating stations and classification hoppers are set on both sides of the belt, and different types of materials sorted are respectively placed in the corresponding collection ports, achieving mechanization and assembly line sorting of garbage.
Inquire Now

◉ Main Features

*Integrated sorting station: Sorting platforms, sorting chutes, and hoppers are installed on both sides of the belt, allowing multiple people to work simultaneously without interfering with each other;
*Adjustable speed: Variable frequency speed control for belt speed, matching with sorting rhythm to improve sorting rate;
*Flexible arrangement: Climbing sections, turning sections, and multi-level diversion can be combined according to the space of the factory building to string together the entire sorting line;
*Easy to clean and maintain: The rack is treated with spray coating/galvanizing, equipped with a scraper for cleaning, suitable for environments with garbage, dust, and leachate;
*Full line interlocking: linked with crushing, magnetic separation, drum screen and other equipment for start stop, automatic protection against overload.

◉Specification parameters (common range)


ItemParameter Range
Belt width500 / 650 / 800 / 1000 / 1200 mm
Single unit length3 ~ 30 m (complete line combined according to process)
Conveying capacityApprox. 5 ~ 60 t/h (depending on sorting line scale)
Belt speed0.2 ~ 1.25 m/s (low speed adjustable in sorting section)


◉ Applicable scenarios

Suitable for household waste sorting and treatment plants, urban and rural waste comprehensive treatment stations, construction and decoration waste resource utilization production lines, stale waste treatment projects, as well as recycling resource sorting workshops for waste plastics, waste metals, and other materials.
