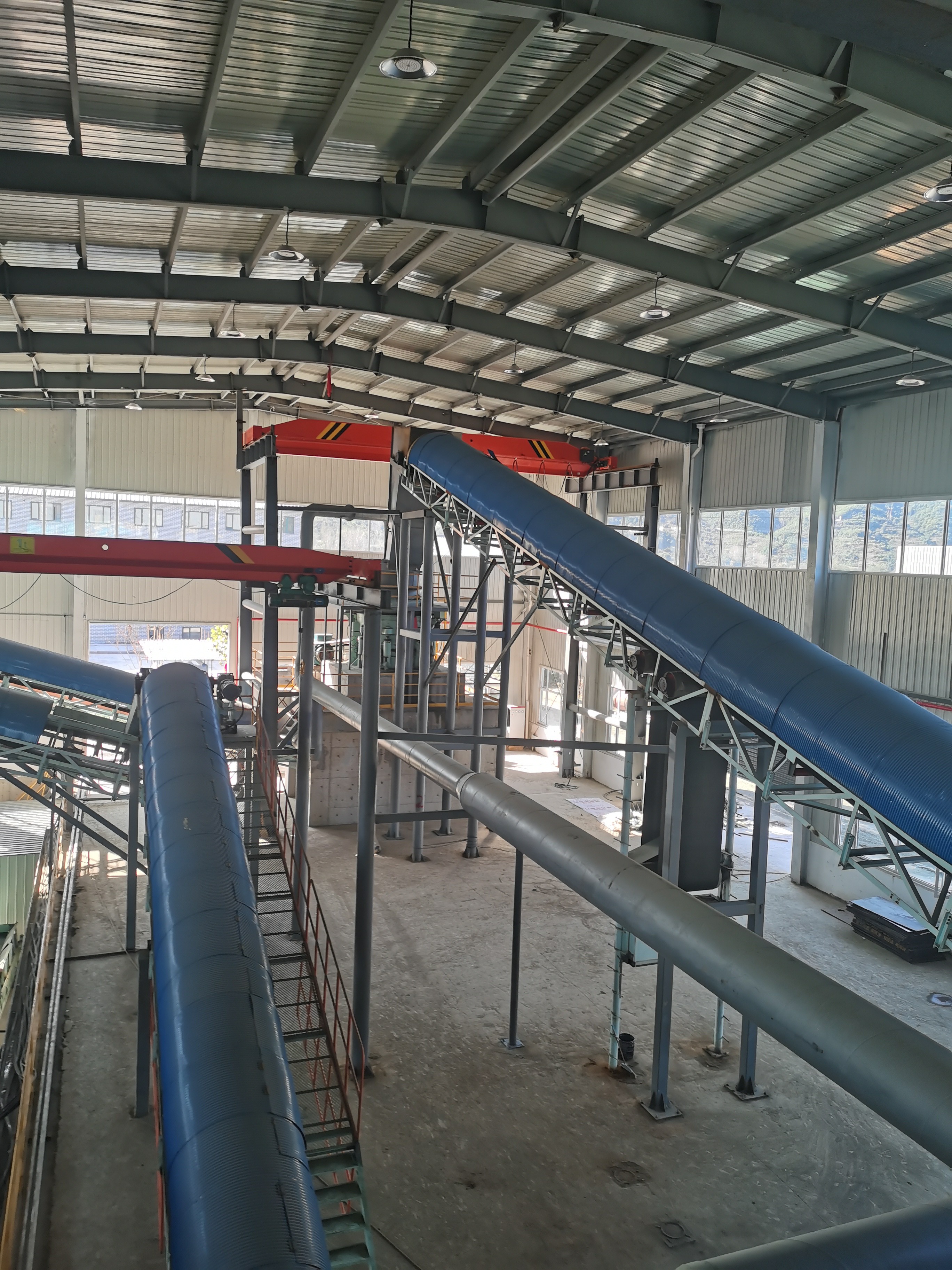

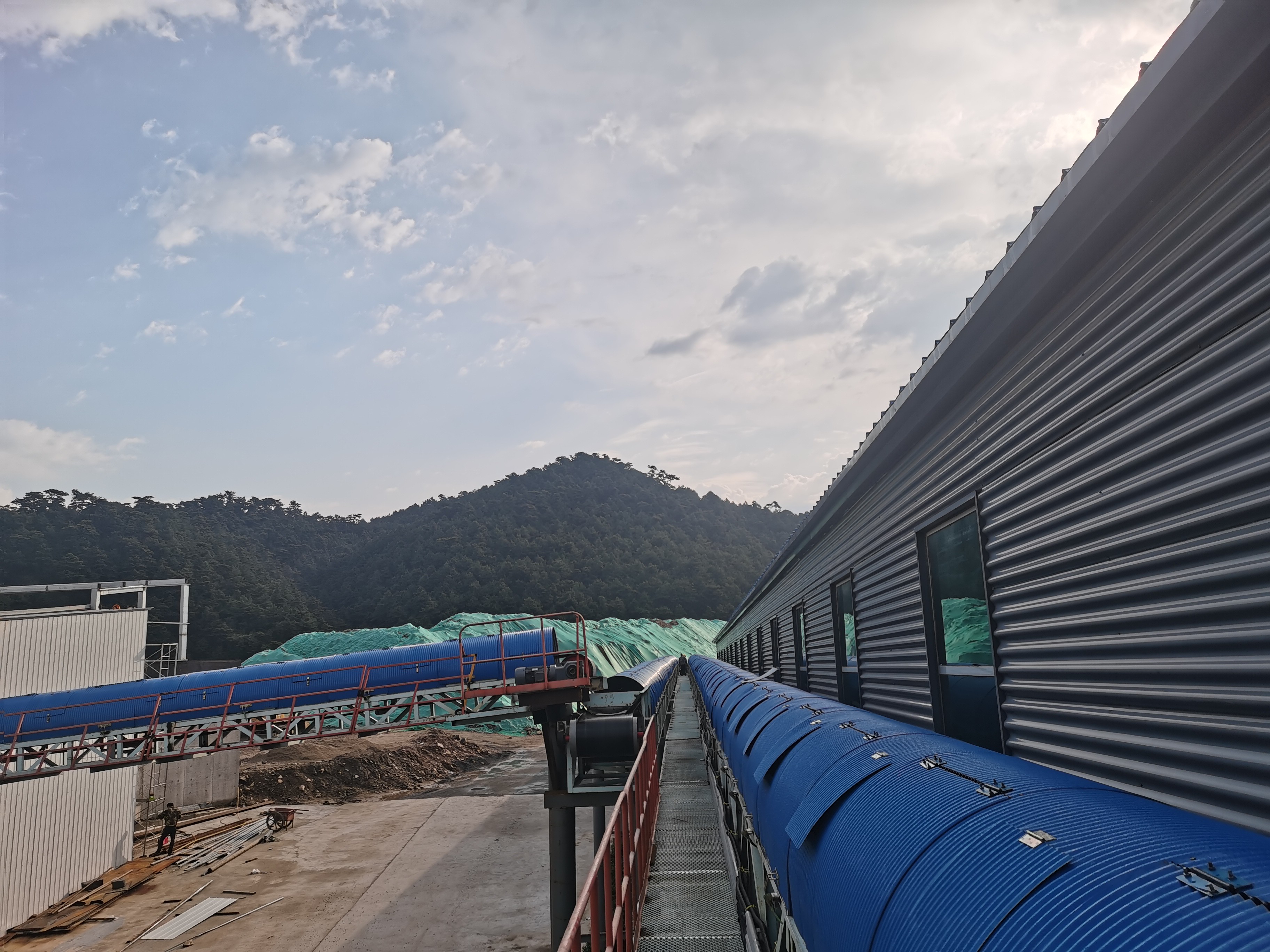

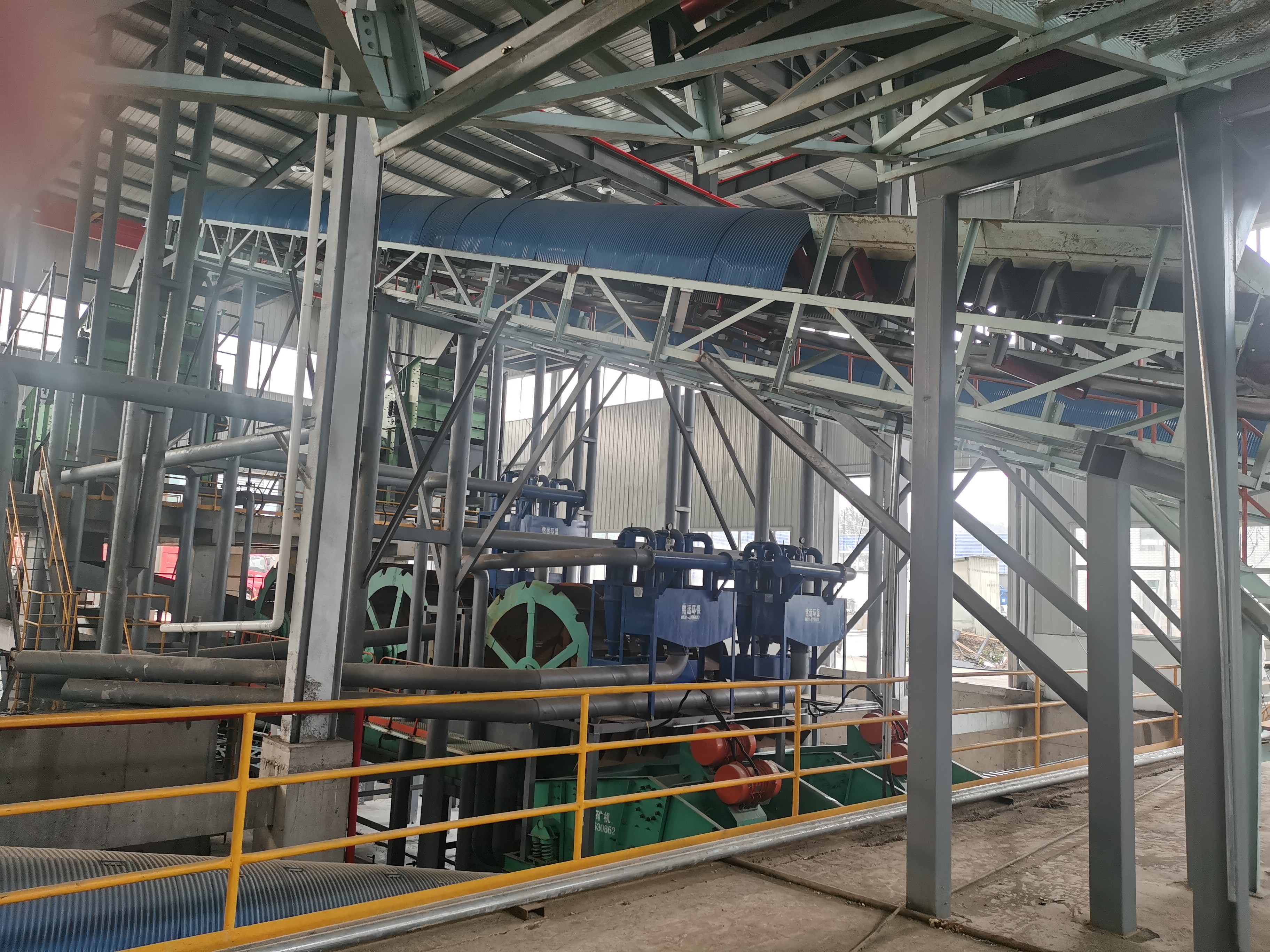

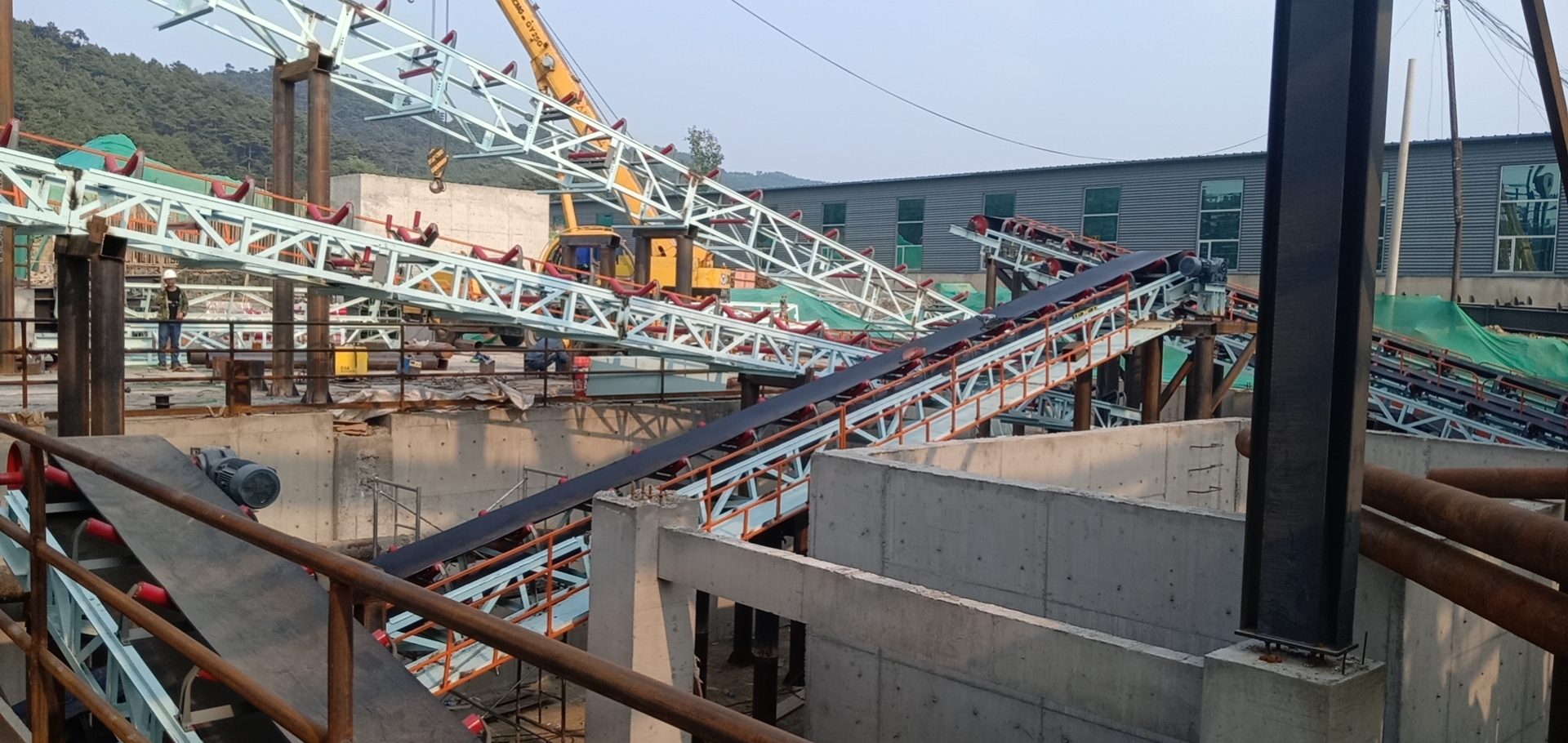

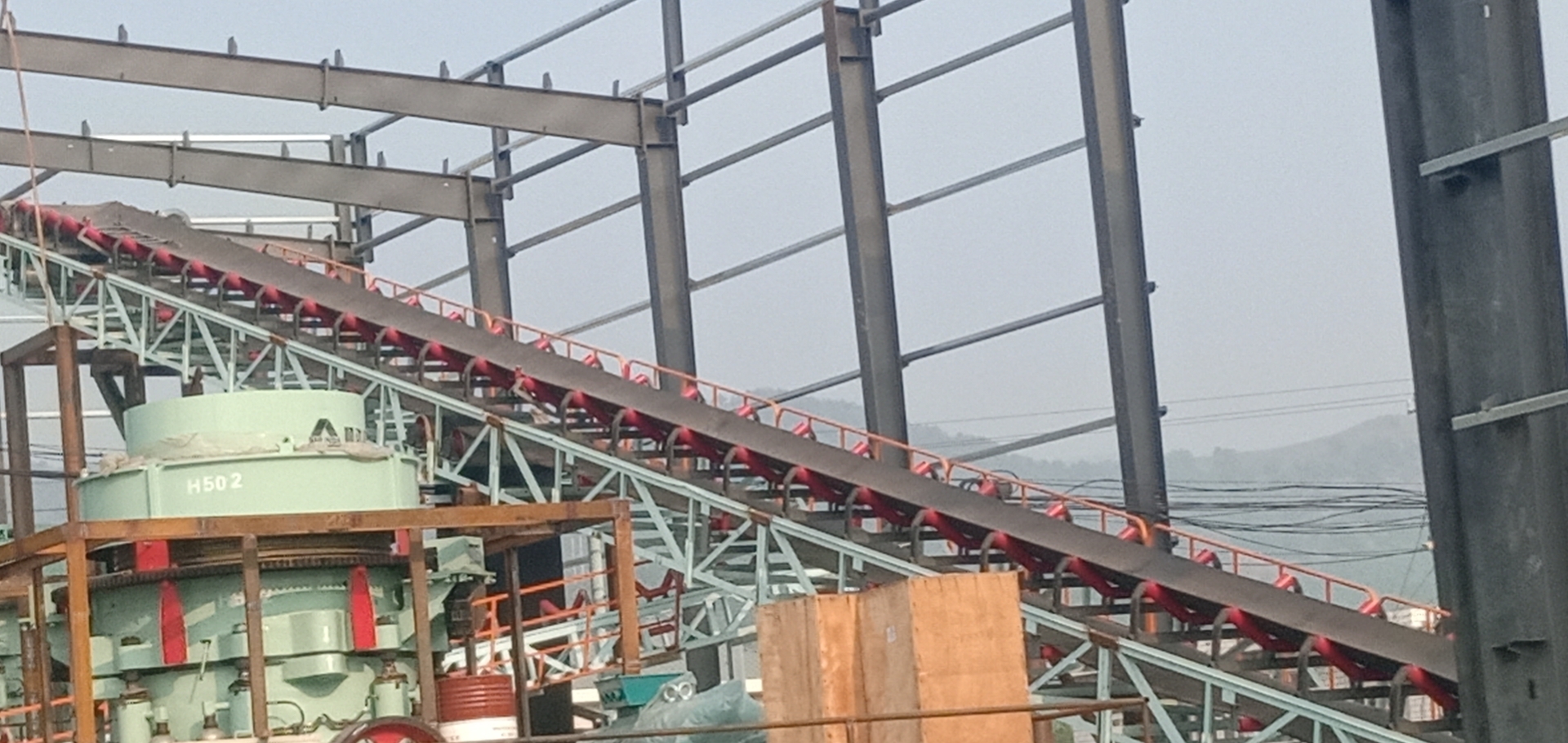

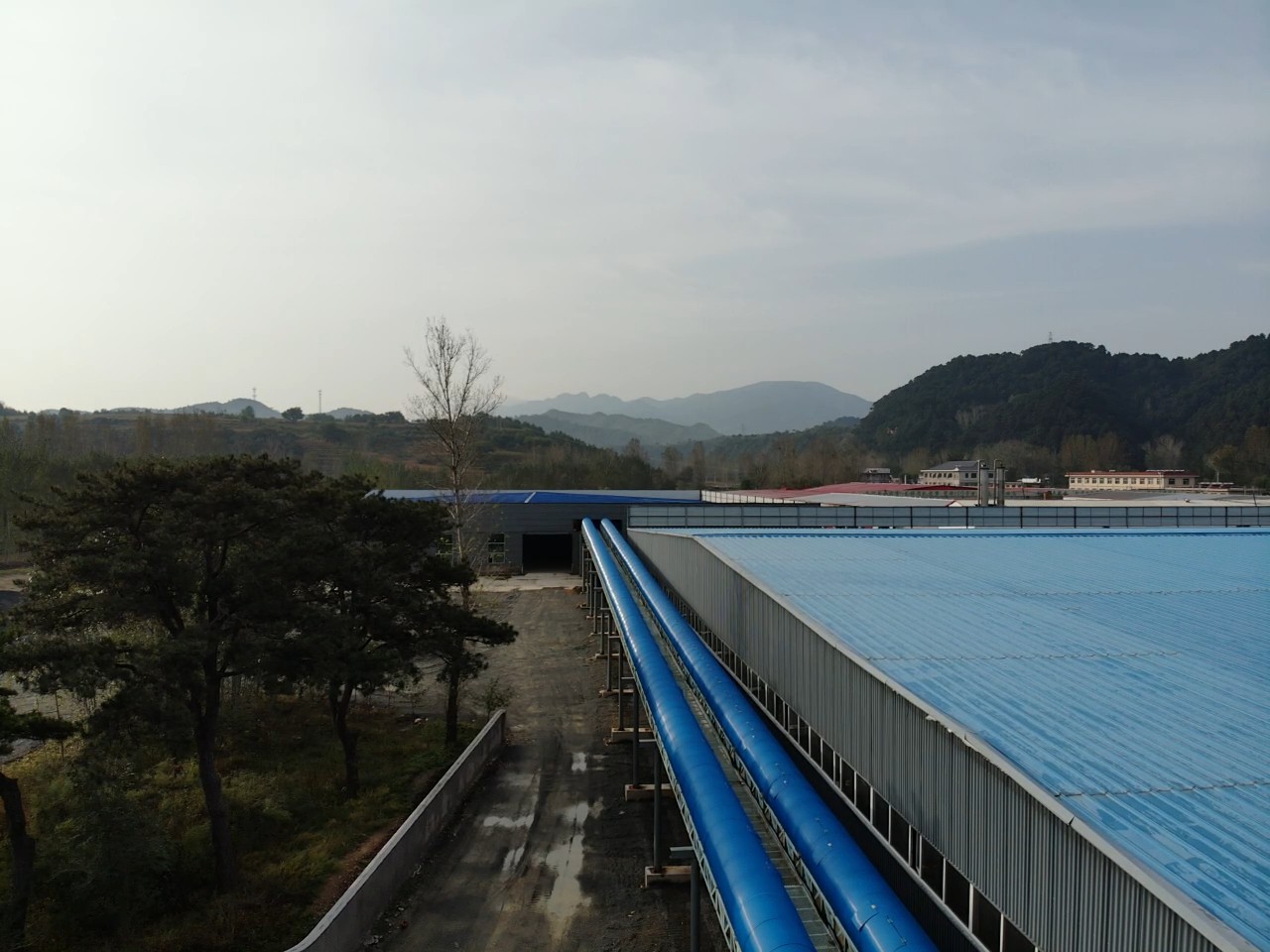

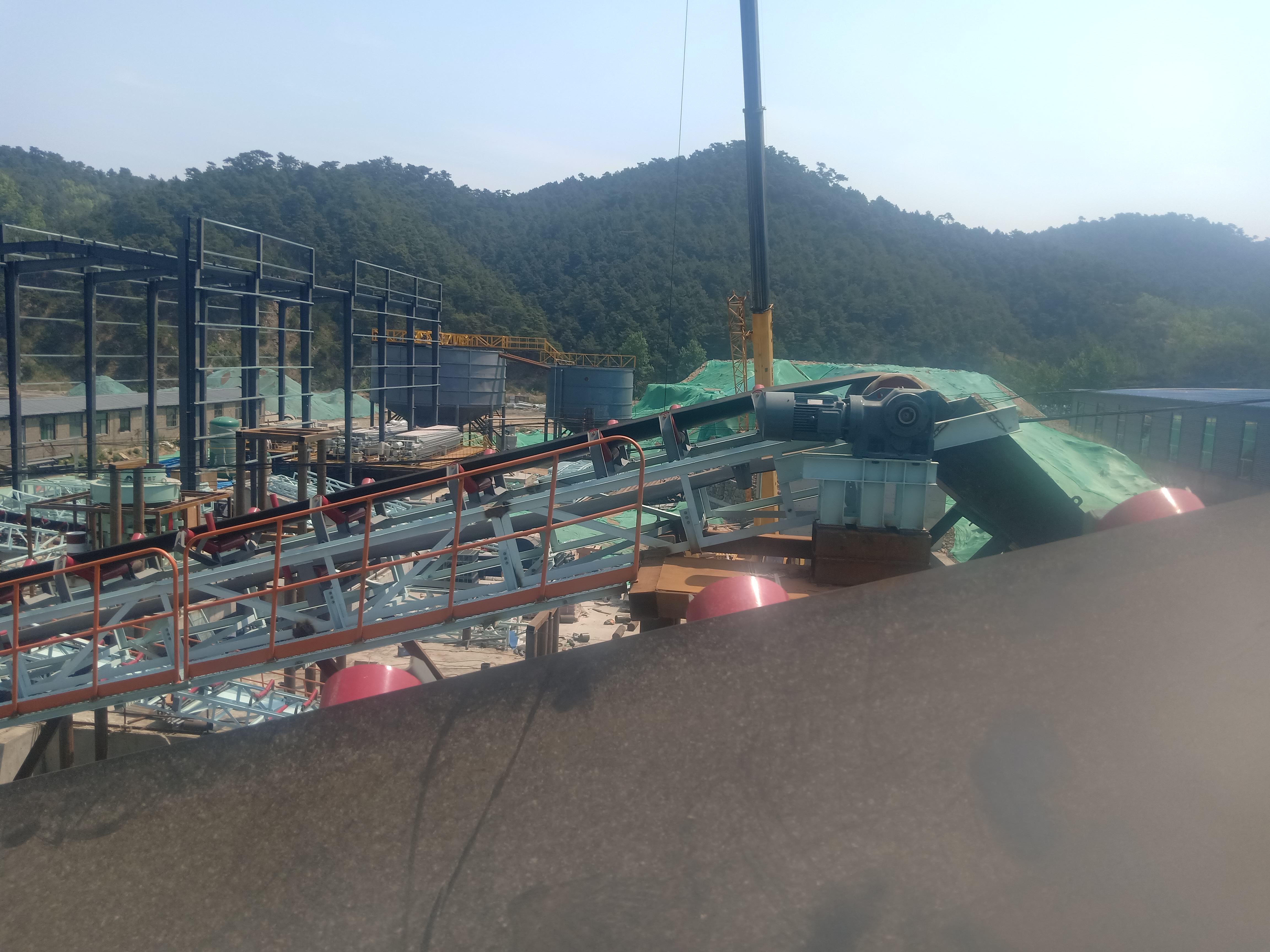

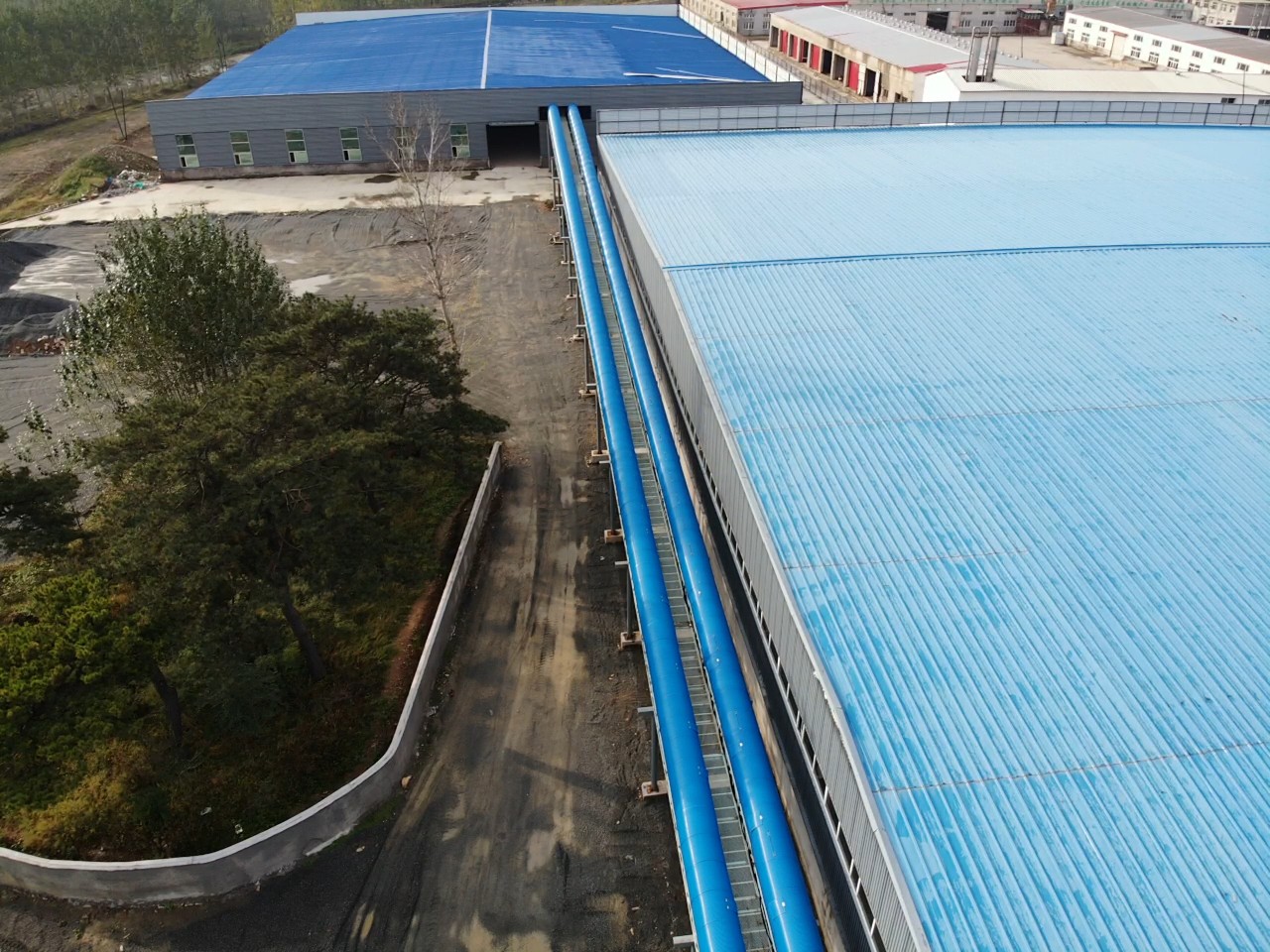

Iron ore project

›

‹

›

Iron ore project

◉ Product Introduction

The ore aggregate conveyor is a heavy-duty belt conveyor designed for mining and sand aggregate production lines, used for continuous transportation of block and granular materials such as iron ore, limestone, granite crushed stone, and machine-made sand. In response to the characteristics of large ore capacity, large block size, and strong impact, the equipment is equipped with buffer beds/buffer rollers at the receiving point, and high-strength wear-resistant belts are selected for the conveyor belt. The long-distance section is arranged with trusses or ground steel structures, which can achieve the full process of transportation from crushing, screening to material yard and loading.
Inquire Now

◉ Main Features

*Anti impact design: The material receiving point is equipped with a slow punching machine and a shock-absorbing roller group, and large ore can be directly loaded without hitting the belt;
*High strength and wear-resistant: using high-strength and wear-resistant conveyor belts to adapt to the cutting wear of sharp ores;
*Large capacity and long distance: a single line can transport hundreds of meters, with high capacity, replacing short trips by cars, and significantly reducing transportation costs;
*Multi machine interlocking: Multiple machines can be connected in series to form a conveying system, with centralized interlocking control and automatic protection for start stop sequence;
*All day operation: Outdoor sections can be equipped with rain covers and maintenance railings, and production can continue in adverse weather conditions.

◉Specification parameters (common range)


ItemParameter Range
Belt width650 / 800 / 1000 / 1200 / 1400 / 1600 mm
Conveying length10 ~ 500 m (longer distances achievable with multiple units in series)
Conveying capacityApprox. 200 ~ 3000 t/h
Belt speed1.25 ~ 3.15 m/s


◉ Applicable scenarios

Widely used for the transportation of ore from mining areas such as iron ore and limestone mines to crushing stations, the full process transportation of sand and gravel aggregate production lines from crushing to screening to finished material yards, the loading and unloading of washed sand and gravel materials onto ships, and the matching of material stacking and retrieval systems in material yards (including high density iron ore and other mineral projects).
