◉ Product Introduction

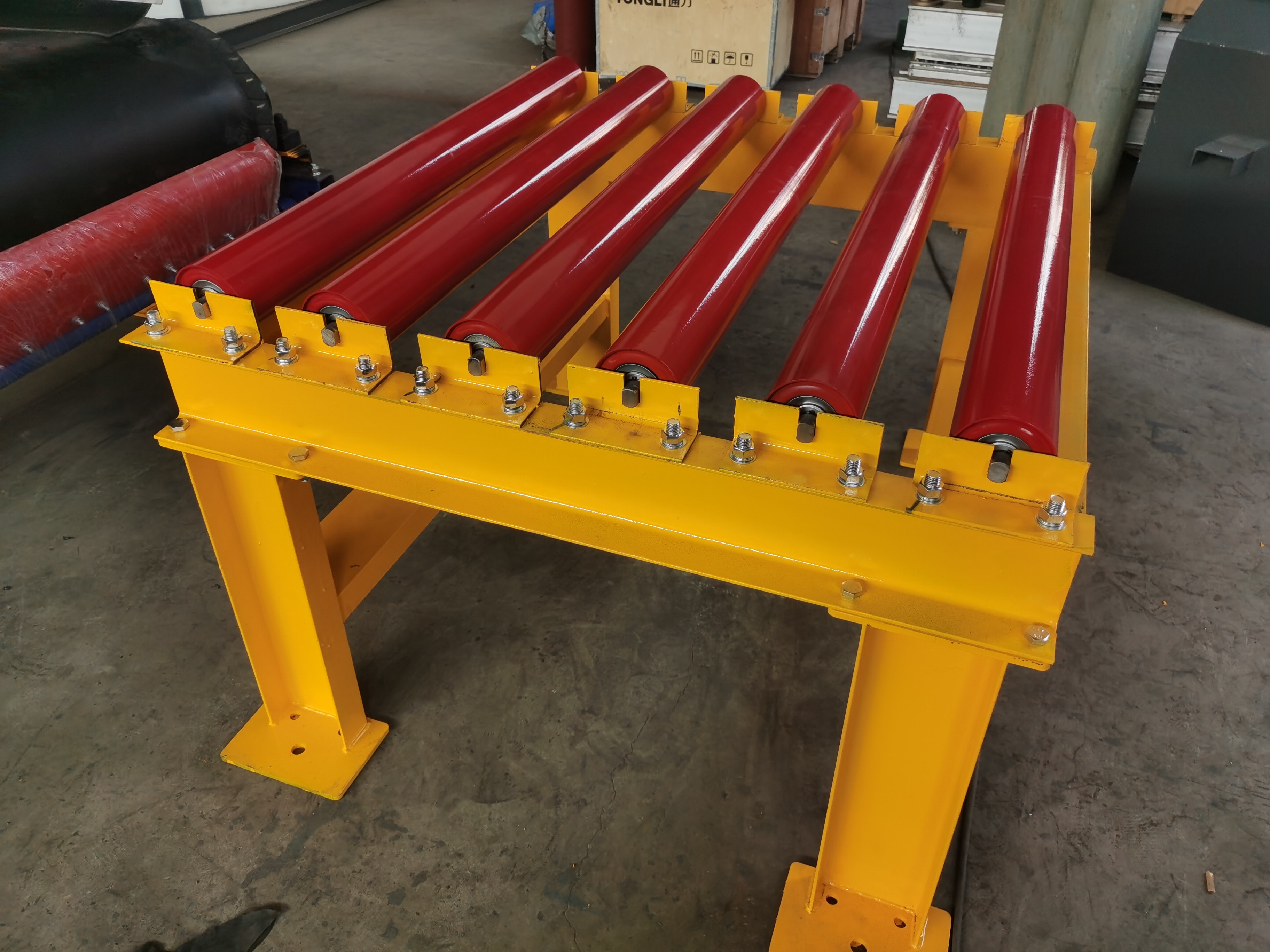

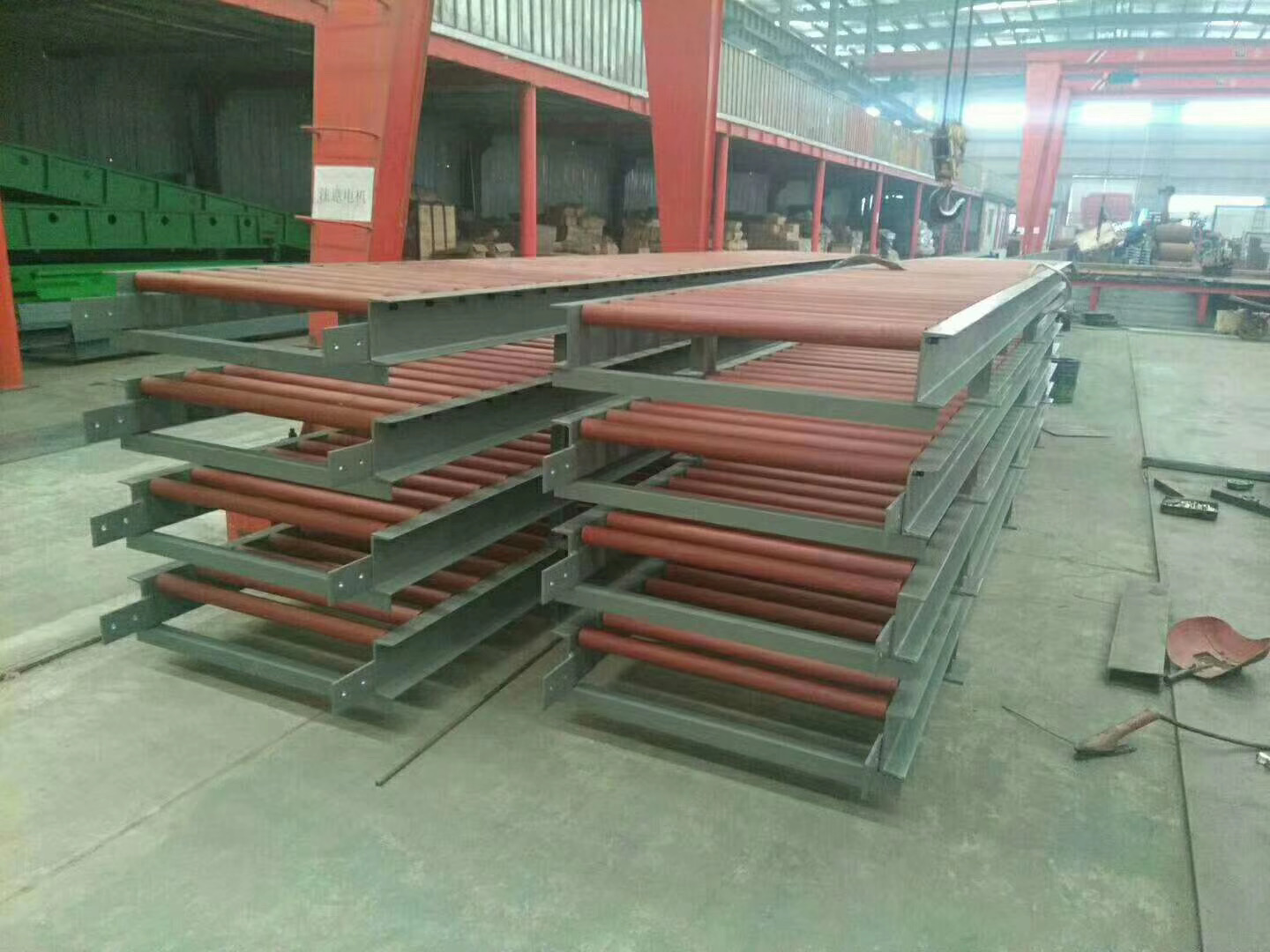

Roller frame (idler frame) is a rotating component assembly that supports conveyor belts and materials, including groove idler sets, parallel idlers, buffer idlers, self-aligning idlers, and matching idler brackets. The roller body is made of specialized welded pipe, and the bearing seat is stamped/cast iron formed. The seal is a multi-layer labyrinth structure with good dust and water resistance performance; The groove group is supplied in groups according to the 35 ° groove angle standard, and the standard conveyor groove surface is formed by installing the bracket.
Inquire Now

◉ Main Features

*Flexible rotation and low resistance : High quality deep groove ball bearings with lithium grease lubrication provide low operating resistance, energy saving, and stable belt speed;
*Maze seal dustproof water: Multi layer maze+dustproof ring double seal, mineral dust and rainwater cannot enter the bearing, long service life;
*Accurate coaxiality : Dynamic balance correction of the roller body, small radial runout, smooth belt operation, and no scratching of the belt surface;
*Complete range of products : groove shaped, parallel, buffering (rubber ring shock absorption), self-aligning, return roller full series matching;
*Strong interchangeability: The outer diameter, shaft diameter, and length are produced according to national standards and can be replaced with other brands of conveyors.

◉Specification parameters (common range)


ItemParameter Range
Idler diameter76 / 89 / 108 / 133 / 159 mm
Compatible belt width400 ~ 1400 mm
Trough angle0° / 35° / 45°
Load-carrying conveying capacityApprox. 20 ~ 3000 t/h (depending on overall configuration)


◉ Applicable scenarios

Used for supporting the bearing section, return section, and receiving point of all types of belt conveyors: Buffer rollers are used for shock absorption at the ore dropping point, groove roller sets are used for bulk material bearing, and parallel rollers are used for return and packaging material conveying. They are the most commonly replaced components in the daily maintenance of conveyors.
