Rotating, elevating, and extending belt conveyor

◉ Product Introduction

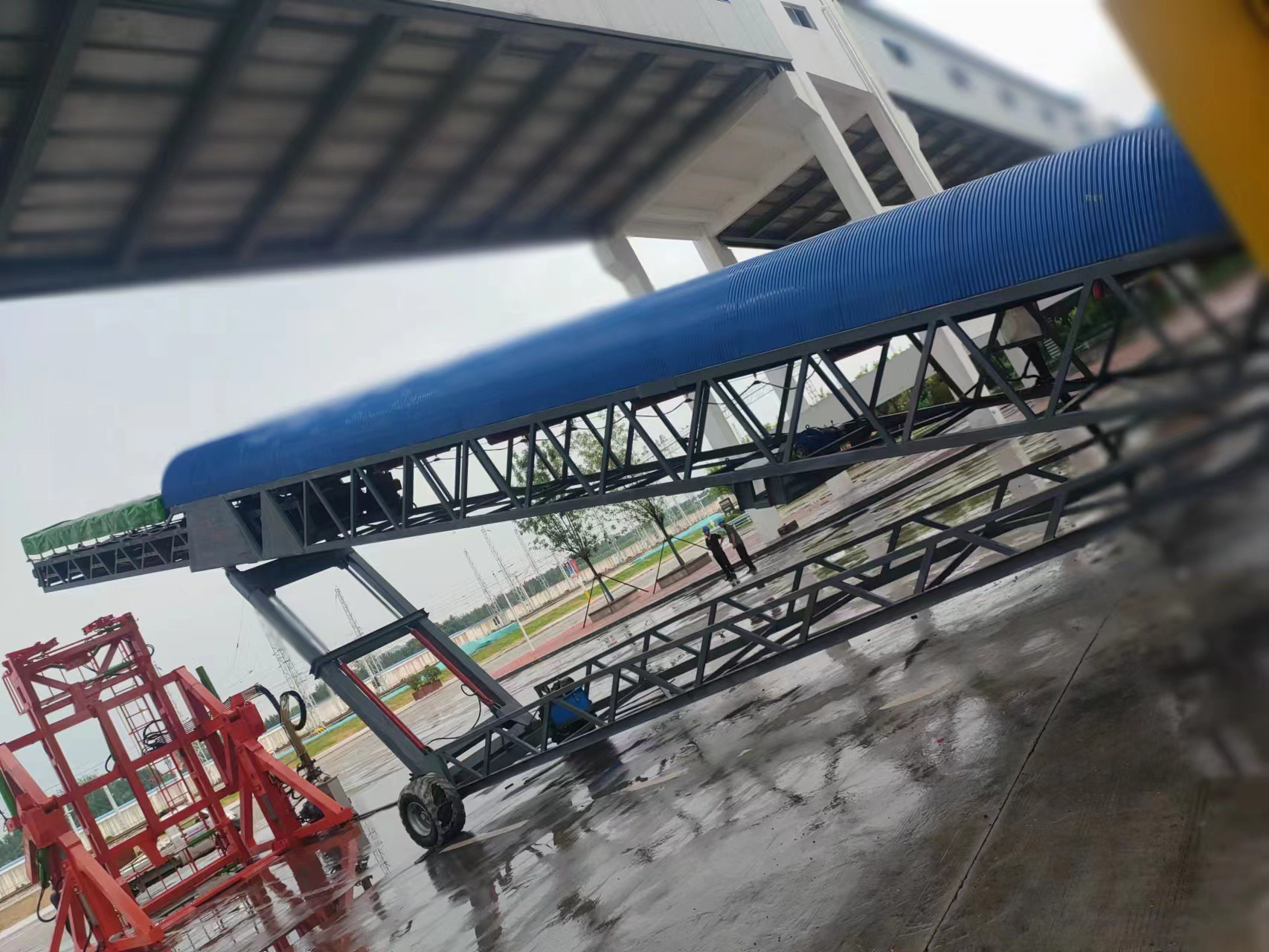

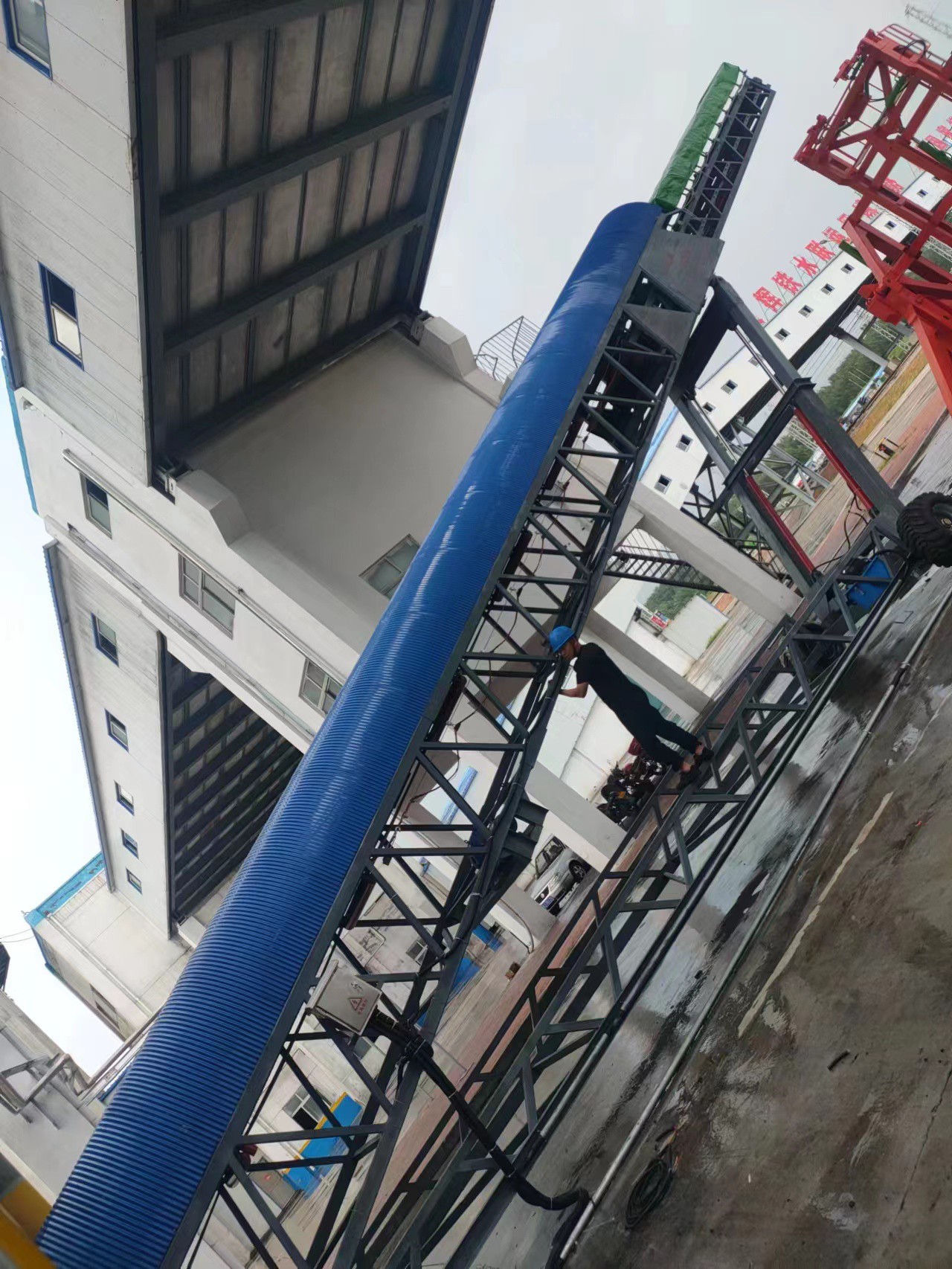

The telescopic belt conveyor with rotation and lifting capabilities is a high-end, multifunctional model within the mobile belt conveyor series, integrating three key functions: horizontal slewing, hydraulic lifting, and front-end telescoping. The machine body can rotate horizontally around a pivot point to expand the operational coverage area; a hydraulic cylinder drives the boom for lifting, allowing for continuous adjustment of the discharge height across a wide range; and the front-end conveyor section can extend or retract electrically to reach deep into truck beds, containers, or silos, ensuring precise positioning and uniform material distribution during loading. The coordination of these three movements enables the equipment to handle highly complex loading and stockpiling scenarios.
jarryyoung@163.com
+86 19806126889
Inquire Now

◉ Main Features

*Three-in-One Motion: Combines slewing, lifting, and telescoping capabilities, allowing a single unit to perform the functions of multiple stations in a fixed conveyor system;
*Deep-Reach Operation: The telescopic boom can extend directly into containers, box trucks, or silo openings, enabling precise control over material discharge points and minimizing dust generation and material breakage;
*Hydraulic Lifting with High Load Capacity: Features a wide lifting range and smooth operation under load, accommodating various receiving heights such as those of high-sided trucks, open-top wagons, and silos;
*High Level of Automation: Offers options for centralized electrical control, variable frequency speed regulation, and remote control, enabling a single operator to handle all positioning tasks;
*Compact Layout: Requires minimal footprint, making it ideal for space-constrained areas such as silo discharge points and workshop passageways.

◉Specification parameters (common range)

ItemParameter Range
Belt width650 / 800 / 1000 / 1200 mm
Conveying length12 ~ 22 m (including telescopic section 2 ~ 4 m)
Lifting heightApprox. 2 ~ 8 m (hydraulically continuously adjustable)
Slewing angleCustomized according to working conditions (commonly ±90° ~ 180°)
Conveying capacityApprox. 60 ~ 500 t/h


◉ Applicable scenarios

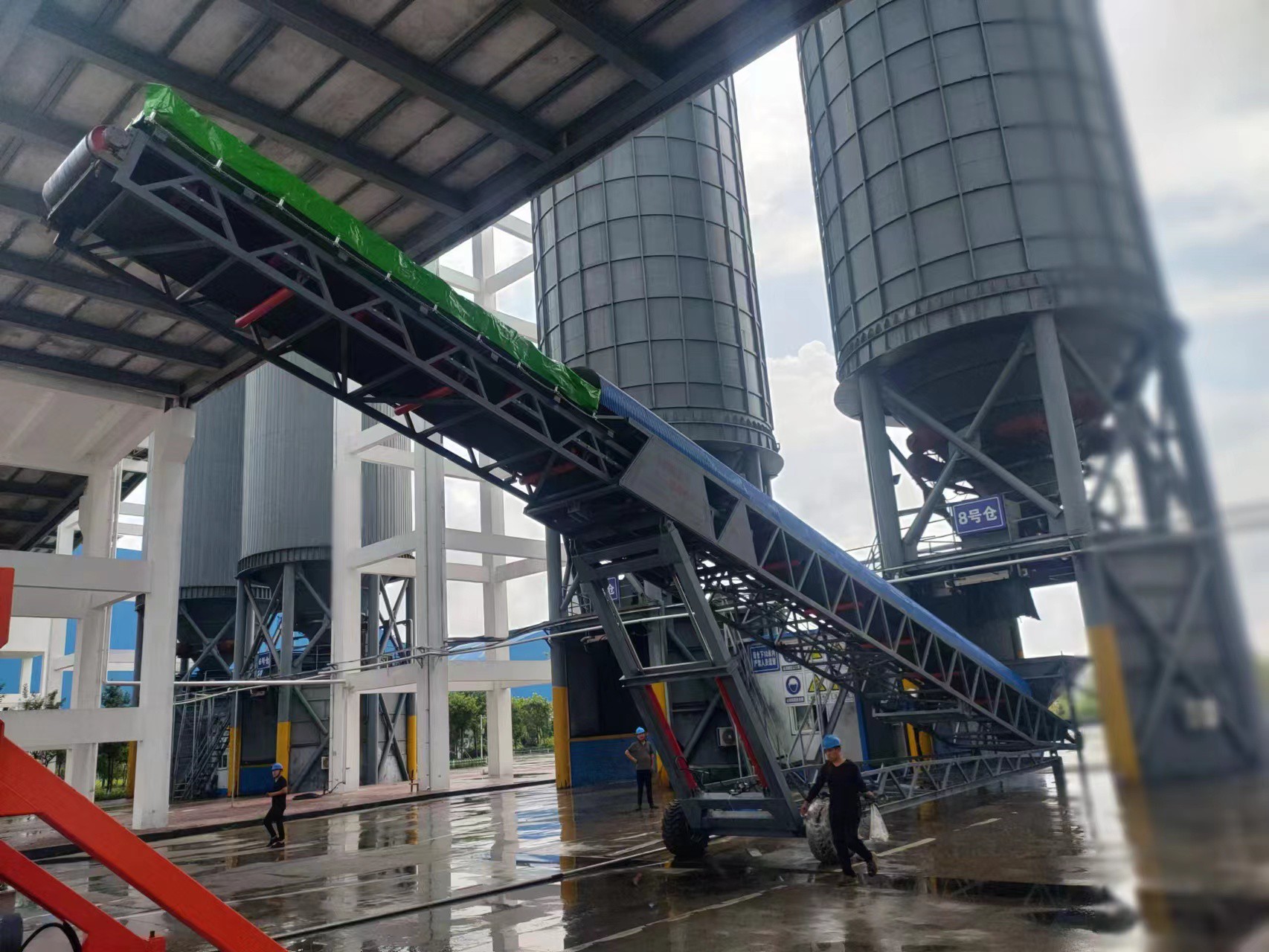

It is primarily used for bottom-loading operations from silos (handling materials such as cement, fly ash, and mineral powder), loading bulk grain into silos, and filling containers or box trucks with animal feed and chemical raw materials. It is also suitable for multi-station loading and unloading tasks in space-constrained environments like ports and loading platforms. Capable of handling diverse tasks with a single unit, this model excels in scenarios requiring flexible loading locations, significant height differences between the discharge and intake points, and precise reach into the receiving area; it is an ideal component for large-scale warehousing, logistics, and bulk material loading systems.
